Component Test - Seat Control Switch
- Remove the seat control switch. See SEAT CONTROL SWITCH REMOVAL/INSTALLATION .
- Inspect for continuity between the seat control switch terminals using a self-powered test light or an ohm-meter.

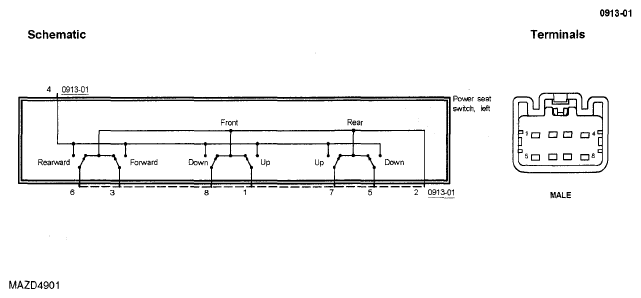

TERMINALS REFERENCE
| Circuit To Test | Connect Self-Powered Test Light Or Ohmmeter To Terminals | Move Switch To These Positions | A Good Switch Will Indicate |
|---|---|---|---|
| Seat up/down circuit, rear | 4 and 7 5 and 2 4 and 5 7 and 2 |
Up Down |
Closed circuit Closed circuit |
| Seat up/down circuit, front | 4 and 1 8 and 2 4 and 8 1 and 2 |
Up Down |
Closed circuit Closed circuit |
| Seat forward/rearward sensor | 4 and 3 6 and 2 4 and 6 3 and 2 |
Forward Rearward |
Closed circuit Closed circuit |
