Outer Mirror Garnish Removal/Installation

  1. Remove the outer mirror glass from the outer mirror. (See OUTER MIRROR GLASS REMOVAL .)
  2. Grasp the upper side of the outer mirror garnish and remove it by pulling it in the direction of the arrow.

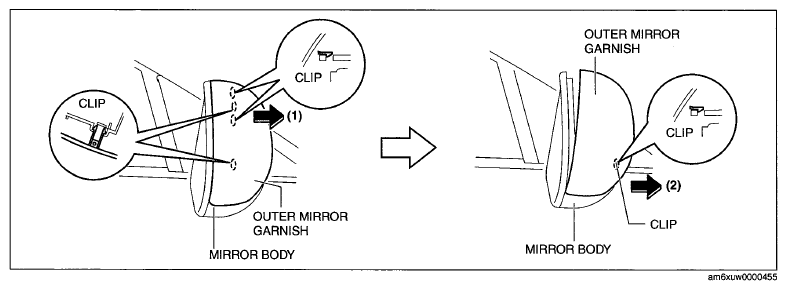

    Fig 1: Removing Outer Mirror Garnish
    G07621949Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
