Outer Mirror Glass Removal
- Disconnect the negative battery cable.

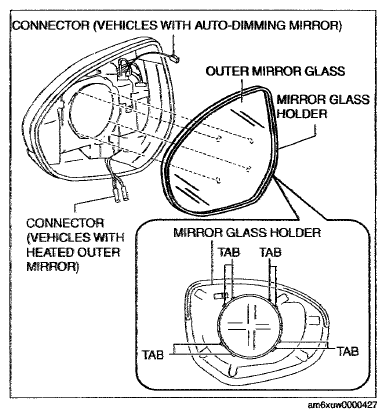

- Press area B of the mirror glass so that area A moves outward.
Courtesy of MAZDA MOTORS CORP.
- Detach tab while lifting up the inside of the mirror glass holder.
- Disconnect the mirror heater connectors. (vehicles with heated outer mirror)
- Disconnect the auto-dimming mirror connectors, (vehicles with auto-dimming mirror)

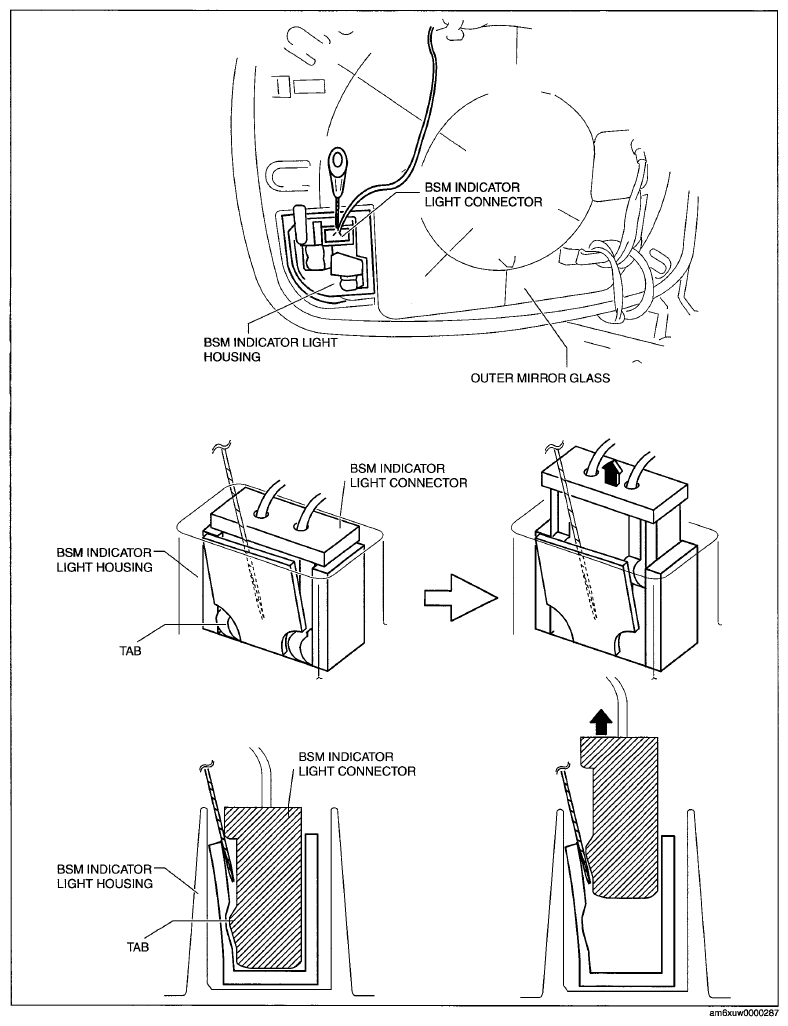

- Insert a tape-wrapped flathead screwdriver to the position shown in the illustration, remove the connector, (vehicles with BSM)
CAUTION:
- The connector can be easily deformed, therefore do not apply excessive force.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
- Remove the mirror glass holder and the outer mirror glass as a single unit.
