Trunk Lid Opener Switch Inspection

  1. Disconnect the negative battery cable.
  2. Remove the trunk lid trim. (See TRUNK LID TRIM REMOVAL/INSTALLATION ).
  3. Remove the high-mount brake light. (See HIGH-MOUNT BRAKE LIGHT REMOVAL/INSTALLATION ).
  4. Remove the trunk lid opener switch. (See TRUNK LID OPENER SWITCH REMOVAL/INSTALLATION ).
  5. Verify the continuity of trunk lid opener switch terminals A and B.

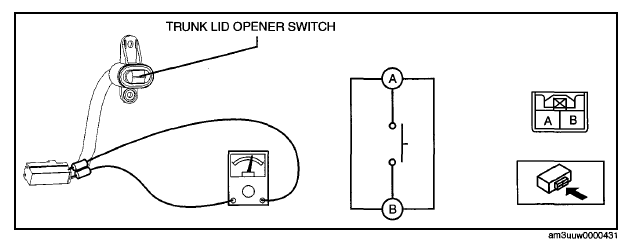

    Fig 1: Checking Continuity Of Trunk Lid Opener Switch Terminals A And B
    G06731972Courtesy of MAZDA MOTORS CORP.
  6. Verify that the continuity is as indicated in the table.

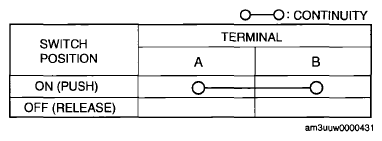

    Fig 2: Trunk Lid Opener Switch Terminals Continuity Chart
    G07875472Courtesy of MAZDA MOTORS CORP.
