Trunk Lid Opener Switch Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the trunk lid trim. (See TRUNK LID TRIM REMOVAL/INSTALLATION ).
  3. Remove the high-mount brake light. (See HIGH-MOUNT BRAKE LIGHT REMOVAL/INSTALLATION ).
  4. Remove the screw.

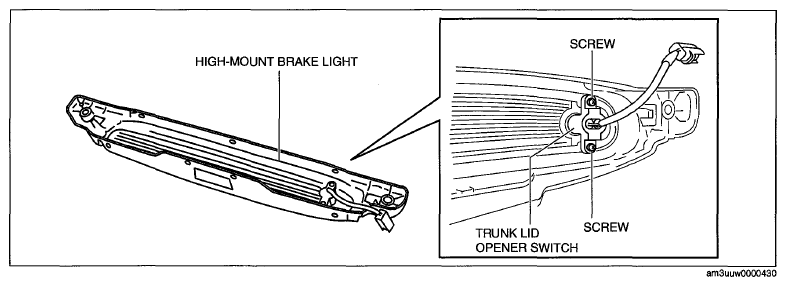

    Fig 1: Identifying Trunk Lid Opener Switch And Screws
    G06731971Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
