Rear Power Window Regulator Removal/Installation

  1. Fully lower the rear door glass.
  2. Disconnect the negative battery cable.
  3. Remove the rear door trim. (See REAR DOOR TRIM REMOVAL/INSTALLATION ).
  4. Remove the service hole cover.
  5. Remove the rear door speaker. (See REAR DOOR SPEAKER REMOVAL/INSTALLATION ).
  6. Remove the glass guide. (See REAR DOOR QUARTER GLASS REMOVAL/INSTALLATION ).
  7. Remove the rear power window motor. (See POWER WINDOW MOTOR REMOVAL/INSTALLATION ).
  8. Remove the rear door glass. (See REAR DOOR GLASS REMOVAL/INSTALLATION ).

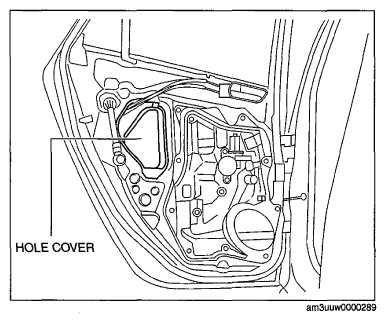

    Fig 1: Identifying Rear Door Quarter Glass And Hole Cover
    G06731768Courtesy of MAZDA MOTORS CORP.
  9. Remove the nuts.
  10. Insert a hand through the speaker installation hole, rotate the drum housing in the direction shown in the figure to detach the tabs from the rear door module.

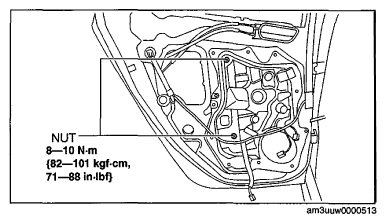

    Fig 2: Rear Door Quarter Glass And Nuts With Torque Specifications
    G06731780Courtesy of MAZDA MOTORS CORP.

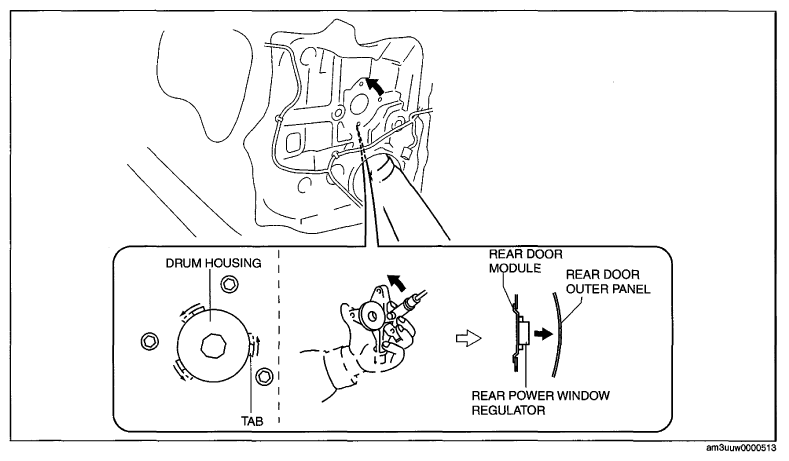

    Fig 3: Rotating Drum Housing
    G06731781Courtesy of MAZDA MOTORS CORP.
  11. Remove the rear power window regulator through the speaker installation hole.
  12. Install in the reverse order of removal.
    CAUTION:
    • Make sure the cable does not unspool from the drum housing when installing.

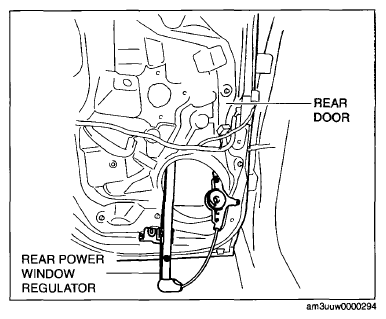

      Fig 4: Removing Rear Power Window Regulator Through Speaker Installation Hole
      G07875192Courtesy of MAZDA MOTORS CORP.
