Rear Door Quarter Glass Removal/Installation

Fully lower the rear door glass.
Disconnect the negative battery cable.
Remove the rear door trim. (See REAR DOOR TRIM REMOVAL/INSTALLATION ).
Remove the hole cover.

Fig 1: Identifying Rear Door Quarter Glass And Hole Cover
Courtesy of MAZDA MOTORS CORP.
Remove the hole plug.

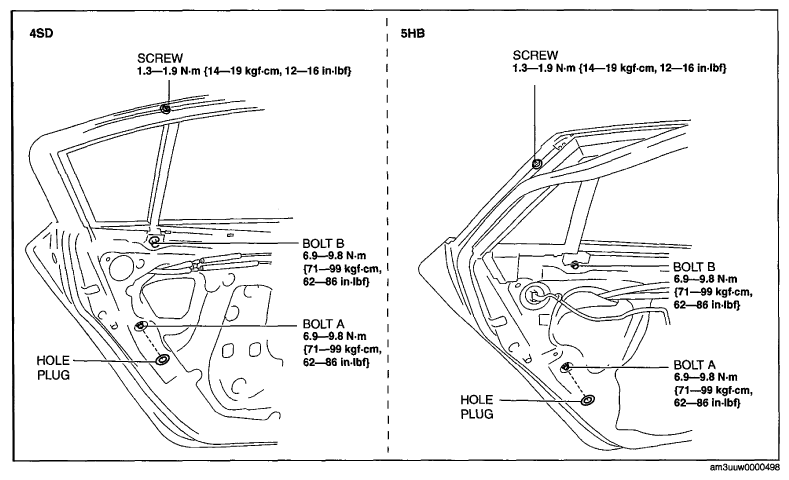

Fig 2: Rear Door Quarter Glass, Hole Plug And Screws With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Remove the screw.
Remove the bolt A and B.
Remove the rear door glass guide.

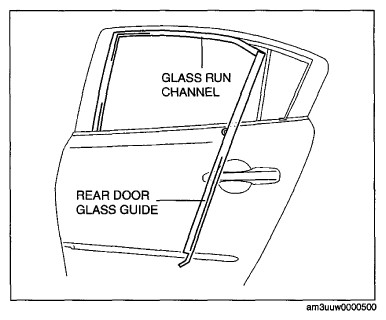

Fig 3: Identifying Rear Door Glass Guide And Glass Run Channel
Courtesy of MAZDA MOTORS CORP.
Remove the pin. (5HB)

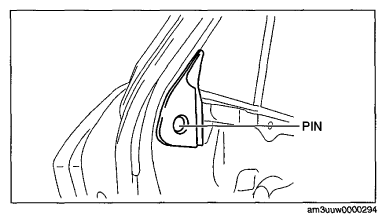

Fig 4: Identifying Rear Door Glass And Pin (5HB)
Courtesy of MAZDA MOTORS CORP.
Slide the rear door quarter glass in the direction of the arrow (1) shown in the figure.

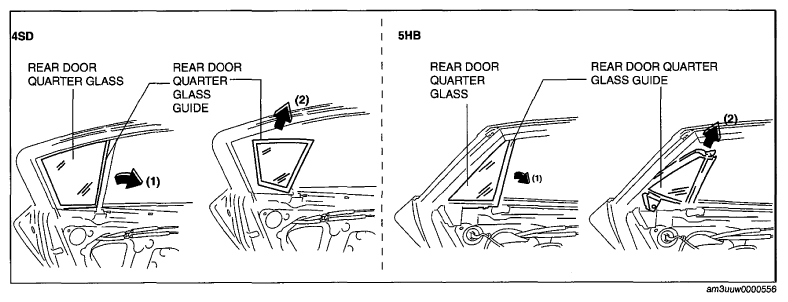

Fig 5: Sliding Rear Door Quarter Glass
Courtesy of MAZDA MOTORS CORP.
Remove the rear door quarter glass and rear door quarter glass guide as a single unit in the direction of the arrow (2) shown in the figure.
Remove the rear door quarter glass from the rear door quarter glass guide.

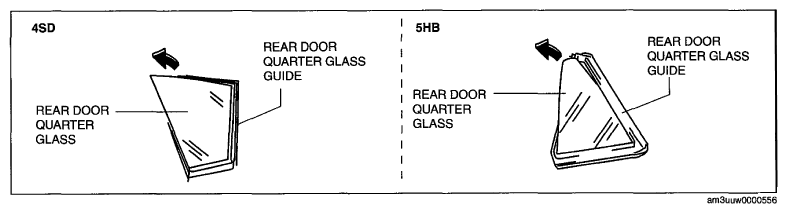

Fig 6: Removing Rear Door Quarter Glass From Rear Door Quarter Glass Guide
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
