G35M-R, G66M-R: Notes

Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [LF, L5] .)
Disconnect the negative battery cable.
Remove the battery component, (ex: battery, battery tray and PCM component) (See BATTERY REMOVAL/INSTALLATION [LF, L5] .)
Remove the air cleaner component. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [LF, L5] .)
Remove the aerodynamic under cover NO. 2. (See AERODYNAMIC UNDER COVER NO. 2 REMOVAL/INSTALLATION .)
Remove the tunnel member, (rear) (See EXHAUST SYSTEM REMOVAL/INSTALLATION [LF, L5] .)
Remove the upper panel. (See UPPER PANEL REMOVAL/INSTALLATION .)
Remove the shift lever knob.
Remove the shift panel. (See SHIFT PANEL REMOVAL/INSTALLATION .)
Remove the side wall. (See SIDE WALL REMOVAL/INSTALLATION .)
Remove the console. (See CONSOLE REMOVAL/INSTALLATION .)

Fig 1: Removing Shift Lever Knob
Courtesy of MAZDA MOTORS CORP.

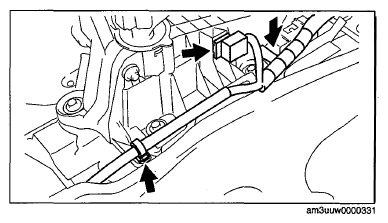

Detach the clip as shown in the illustration.

Fig 2: Locating Clip
Courtesy of MAZDA MOTORS CORP.
Disconnect the drain hose connected to A/C unit. (See A/C UNIT REMOVAL/INSTALLATION .)

Fig 3: Identifying A/C Unit And Drain Hose
Courtesy of MAZDA MOTORS CORP.
Remove the cap and fastener securing the insulator (front) and set the insulator (front) aside.
Remove in the order indicated in the table.
Install in the reverse order of removal.
After installation, verify that the shift lever can be shifted smoothly into each position.

Fig 4: Identifying Insulator Cap And Fastener
Courtesy of MAZDA MOTORS CORP.

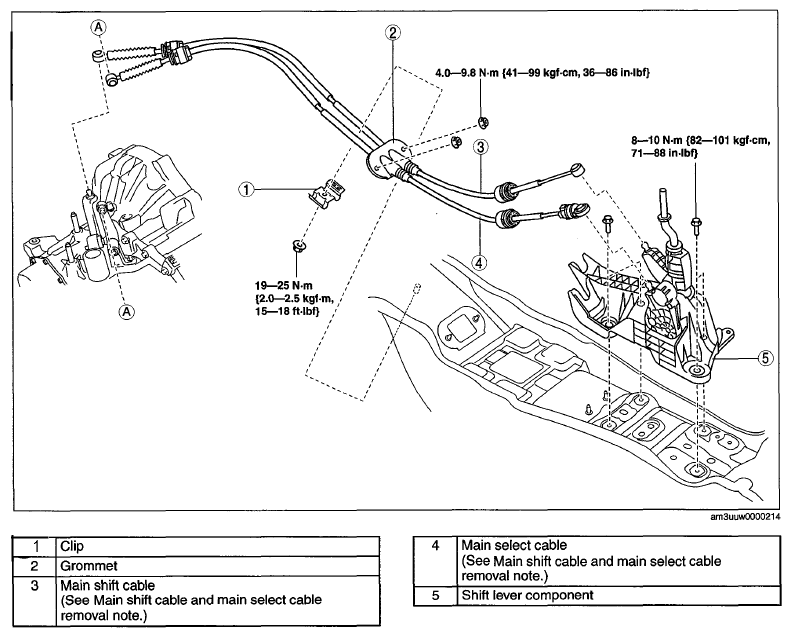

Fig 5: Shift Lever Replacement Components With Torque Specifications

Courtesy of MAZDA MOTORS CORP.
