Console Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION .)
    2. Shift knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    3. Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    4. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    5. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
  3. Remove the bolts.

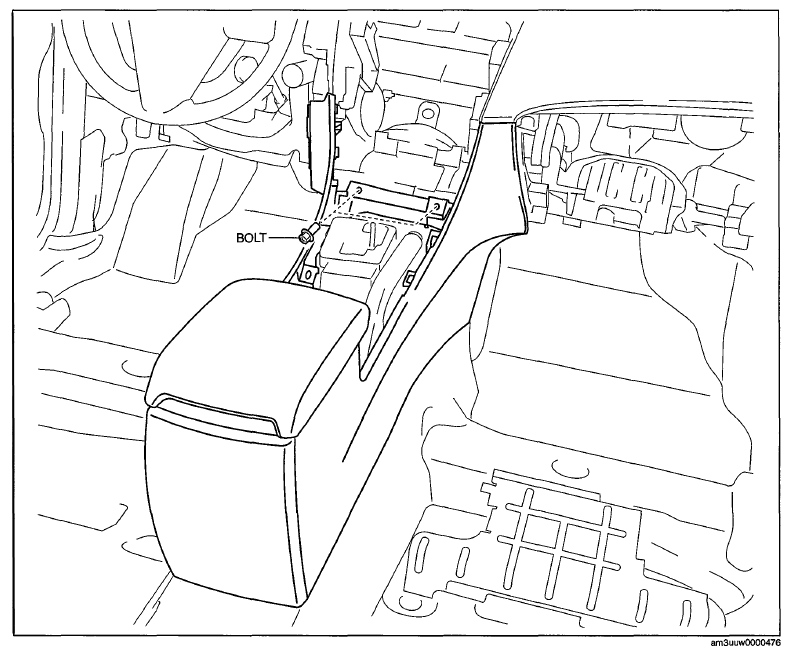

    Fig 1: Identifying Console And Bolt
    G06733087Courtesy of MAZDA MOTORS CORP.
  4. Remove the screws.

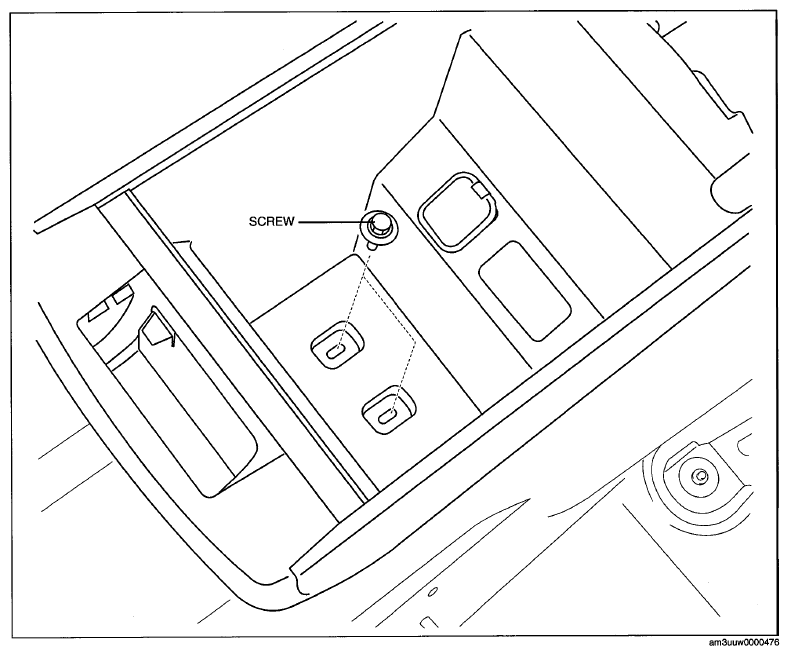

    Fig 2: Identifying Console And Screws
    G06733088Courtesy of MAZDA MOTORS CORP.
  5. Pull the console in the direction of the arrow shown in the illustration, then detaching clips A, C hooks B and guides D.

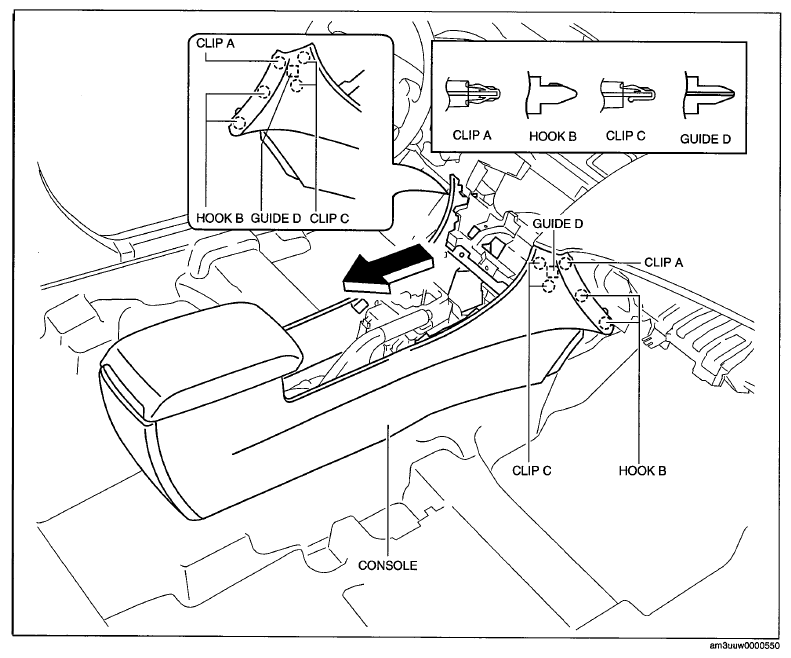

    Fig 3: Identifying Console Pulling Direction, Clips A, C Hooks B And Guides D
    G06733089Courtesy of MAZDA MOTORS CORP.
  6. Pull up the console in the direction of the arrow (1) shown in the illustration, move the rear console in the direction of the arrow (2), and remove it avoiding the parking brake lever.

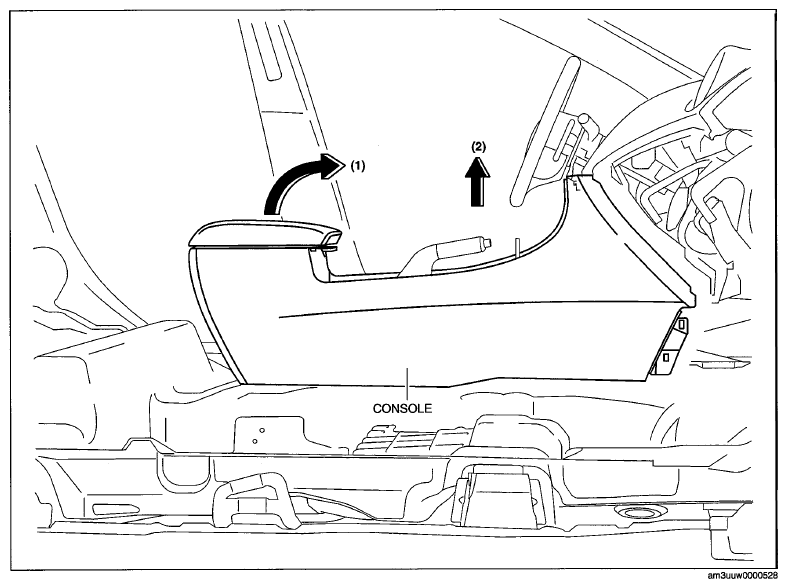

    Fig 4: Identifying Console Pulling Direction
    G06733090Courtesy of MAZDA MOTORS CORP.
  7. Install in the reverse order of removal.
