Door Switch Inspection

WARNING: This page is about a different car, the 2010 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Remove the door switch. (See DOOR SWITCH REMOVAL/INSTALLATION .)
Verify that the continuity between door switch terminal and the body ground is as indicated in the table.
- If not as indicated in the table, replace the door switch.

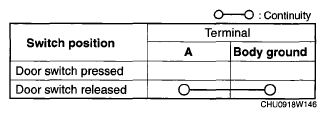

Fig 1: Door Switch Continuity Chart
Courtesy of MAZDA MOTORS CORP.

Fig 2: Identifying Door Switch Connector
Courtesy of MAZDA MOTORS CORP.
