Door Switch Removal/Installation

WARNING: This page is about a different car, the 2010 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the screw.
Disconnect the connector and remove the door switch.
Install in the reverse order of removal.

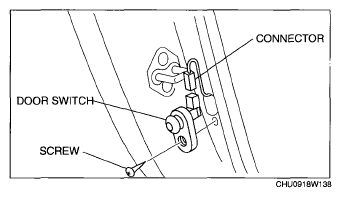

Fig 1: Identifying Door Switch And Connector

Courtesy of MAZDA MOTORS CORP.
