Sliding Door Outer Handle Removal/Installation

  1. Remove the sliding door trim. (See SLIDING DOOR TRIM REMOVAL/INSTALLATION .)
  2. Remove the sliding door glass. (See SLIDING DOOR GLASS REMOVAL/INSTALLATION .)
  3. Remove the sliding door lock actuator. (See SLIDING DOOR REMOVAL/INSTALLATION .)
  4. Remove the sliding door module. (See SLIDING DOOR MODULE REMOVAL/INSTALLATION .)
  5. Remove the bolts.
    Fig 1: View Of Sliding Door Outer Handle Components With Torque Specifications
    G05543465Courtesy of MAZDA MOTORS CORP.
  6. Secure the rear part of the sliding door outer handle and, with the sliding door outer handle lever pulled outward (1), remove the rear part of the sliding door outer handle from the sliding door.

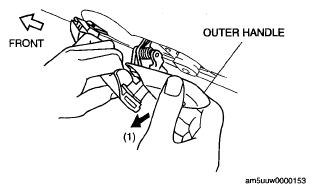

    Fig 2: View Of Rear Part Of Sliding Door Outer Handle From Sliding Door
    G05543466Courtesy of MAZDA MOTORS CORP.
