Sliding Door Latch Removal/Installation

WARNING: This page is about a different car, the 2008 Mazda 5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [L3] .)
  2. Disconnect the negative battery cable.
  3. Remove the following parts:
    1. Sliding door trim (See SLIDING DOOR TRIM REMOVAL/INSTALLATION .)
    2. Cover (See SLIDING DOOR MODULE REMOVAL/INSTALLATION .)
  4. Remove in the order indicated in the table.

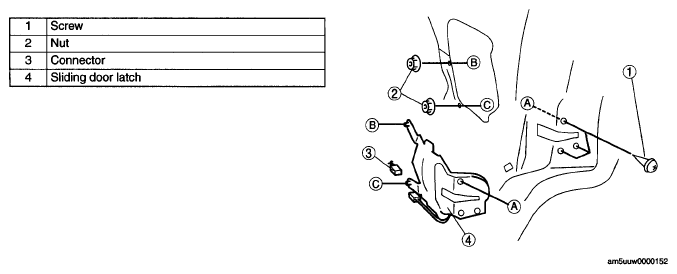

    Fig 1: Identifying Sliding Door Latch Remove / Install Components
    G05543487Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
