Sliding Door Module Removal/Installation

WARNING: This page is about a different car, the 2008 Mazda 5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [L3] .)
  2. Disconnect the negative battery cable.
  3. Remove the following parts:
    1. Side door garnish (See SIDE DOOR GARNISH REMOVAL/INSTALLATION .)
    2. Rear side trim (See REAR SIDE TRIM REMOVAL/INSTALLATION .)
    3. Sliding door trim (See SLIDING DOOR TRIM REMOVAL/INSTALLATION .)
    4. Sliding door glass (See SLIDING DOOR GLASS REMOVAL/INSTALLATION .)
    5. Sliding door lock actuator (See SLIDING DOOR LOCK ACTUATOR REMOVAL/INSTALLATION .)
  4. Disconnect the power window motor connector.
  5. Remove the bolts, then remove the constant power supply wiring harness protector.

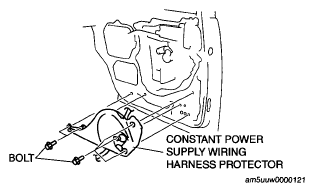

    Fig 1: Identifying Power Supply Wiring Harness Protector And Bolt
    G05545648Courtesy of MAZDA MOTORS CORP.
  6. Remove screws A and the fastener.
  7. Remove the sliding door module.
  8. Install in the reverse order of removal.

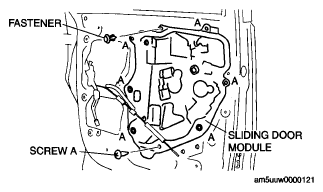

    Fig 2: Identifying Sliding Door Module, Screw And Fastener
    G05545649Courtesy of MAZDA MOTORS CORP.
