Liftgate Outer Handle Switch Inspection

1. Verify that the continuity between the liftgate outer handle switch terminals is as indicated in the table.
   • If not as indicated in the table, replace the liftgate outer handle. (See LIFTGATE OUTER HANDLE REMOVAL/INSTALLATION .)

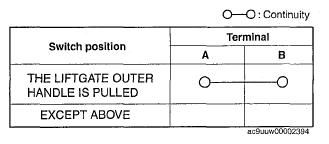

Fig 1: Liftgate Outer Handle Switch Continuity Reference Table

Courtesy of MAZDA MOTORS CORP.

Fig 2: Identifying Liftgate Outer Handle Switch Terminals

Courtesy of MAZDA MOTORS CORP.
