Liftgate Outer Handle Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
  3. Remove the liftgate side trim. (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION .)
  4. Remove the liftgate lower trim. (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION .)
  5. Remove the rear finisher. (See REAR FINISHER REMOVAL/INSTALLATION .)
  6. Disconnect the liftgate outer handle switch connector. (Vehicles with power liftgate system)
  7. Disconnect the cable. (Vehicles without power liftgate system)
  8. Remove in the order indicated in the table.
  9. Install in the reverse order of removal.

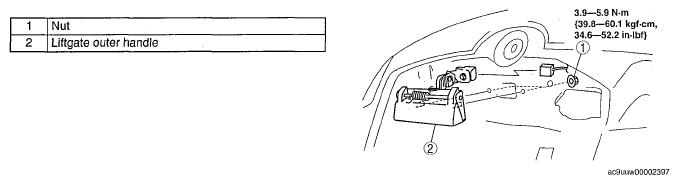

    Fig 1: Liftgate Outer Handle And Nut With Torque Specifications
    G04971252Courtesy of MAZDA MOTORS CORP.
