Front Stabilizer Removal/Installation: Notes

  1. Remove the side cover and under cover.
  2. Drain the power steering fluid. (See POWER STEERING FLUID INSPECTION ).
  3. Remove the transverse member. (See TRANSVERSE MEMBER REMOVAL/INSTALLATION .)
  4. Remove the front crossmember component. (See FRONT CROSSMEMBER REMOVAL/INSTALLATION .)
  5. Remove in the order indicated in the table.
  6. Install in the reverse order of removal.

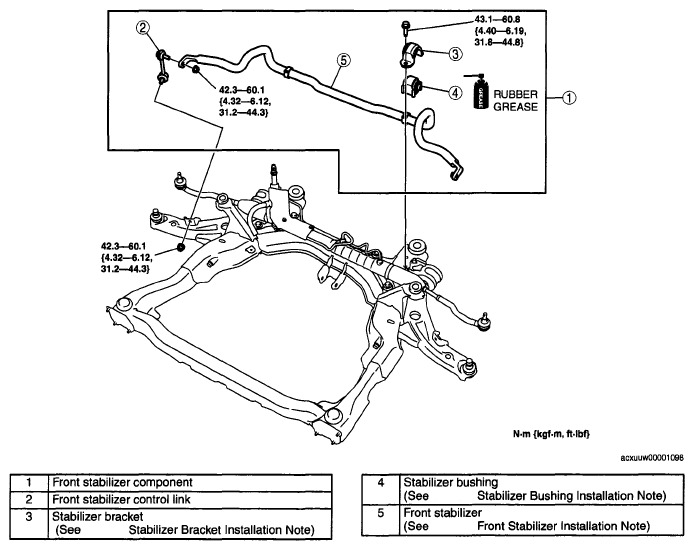

    Fig 1: Front Stabilizer Replacement Components With Torque Specifications
    G04859914Courtesy of MAZDA MOTORS CORP.
