Transverse Member Removal/Installation

Remove the transverse member.

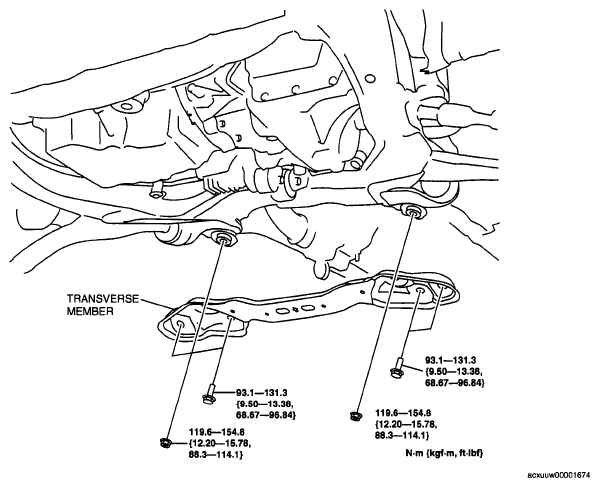

Fig 1: Transverse Member Replacement Components With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Install the transverse member so that the arrow is pointing to the front of the vehicle.

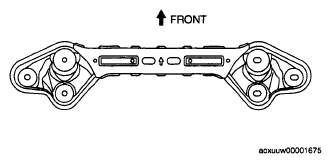

Fig 2: Identifying Transverse Member And To Front Vehicle
Courtesy of MAZDA MOTORS CORP.
Tighten the nut A, then tighten the bolts in the order of B, C to the specified torque.
Tightening torque

Nut A: 119.6-154.8 N.m {12.20-15.78 kgf.m, 88.3-114.1 ft.lbf}

Bolts B and C: 93.1-131.3 N.m {9.50-13.38 kgf.m, 68.67-96.84 ft.lbf}

Fig 3: Identifying Transverse Member Nut And Bolts
Courtesy of MAZDA MOTORS CORP.
