Front CROSSMEMBER Removal/Installation: Notes

  1. Remove the side cover and under cover.
  2. Drain the power steering fluid. (See POWER STEERING FLUID INSPECTION ).
  3. Remove the transverse member. (See TRANSVERSE MEMBER REMOVAL/INSTALLATION .)
  4. Remove the intermediate shaft installation bolt, and disconnect the steering shaft. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION ).
  5. Remove in the order indicated in the table.
  6. Install in the reverse order of removal.
  7. When replace the front crossmember, inspect the front wheel alignment and adjust it if necessary. (See FRONT WHEEL ALIGNMENT ).

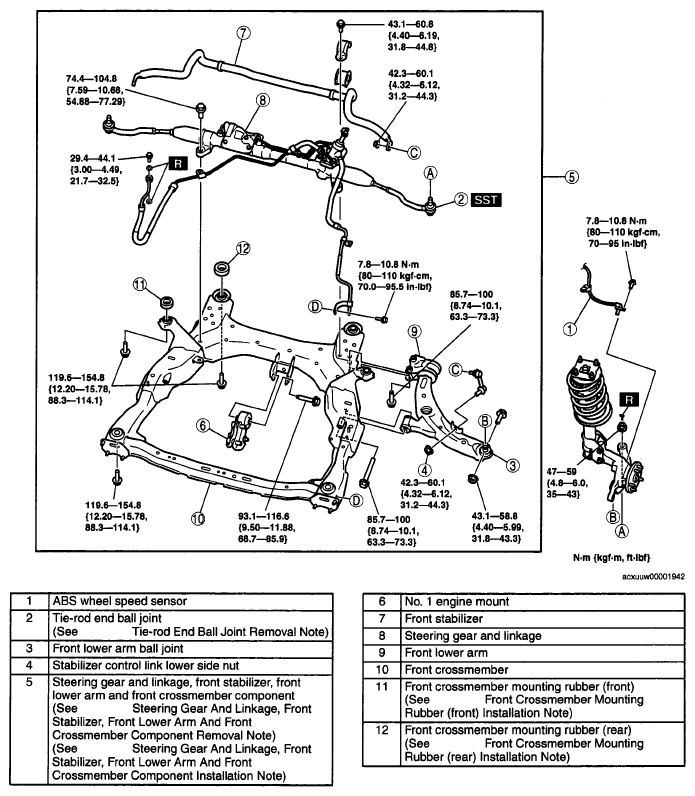

    Fig 1: Front Crossmember Replacement Components With Torque Specifications
    G04859919Courtesy of MAZDA MOTORS CORP.
