Passenger Compartment Temperature Sensor Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. Front scuff plate inner (driver's side). (See FRONT SCUFF PLATE REMOVAL/INSTALLATION ).
    2. Front side trim (driver's side). (See FRONT SIDE TRIM REMOVAL/INSTALLATION ).
    3. Console panel. (See CONSOLE PANEL REMOVAL/INSTALLATION ).
    4. Console. (See CONSOLE REMOVAL/INSTALLATION ).
    5. Hood release lever. (See HOOD LATCH AND RELEASE LEVER REMOVAL/INSTALLATION ).
    6. Lower panel (See LOWER PANEL REMOVAL/INSTALLATION ).
  3. Remove in the order indicated in the table.
  4. Install in the reverse order of removal.

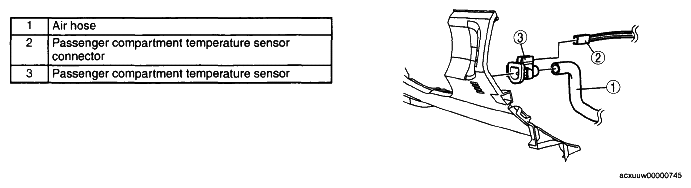

    Fig 1: Identifying Passenger Compartment Temperature Sensor
    G04860682Courtesy of MAZDA MOTORS CORP.
