Console Panel Removal/Installation

  1. Detach clips A from the console using a tape-wrapped flathead screwdriver.
  2. Remove the pin B and tab C.
  3. Remove the pin D.
  4. Remove the console panel.
  5. Install in the reverse order of removal.

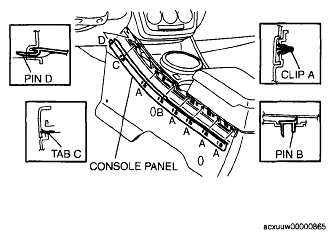

    Fig 1: Identifying Console Panel And Pin
    G04861245Courtesy of MAZDA MOTORS CORP.
