Accessory Socket Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Remove the console panel. (See CONSOLE PANEL REMOVAL/INSTALLATION ).
  3. Remove the console. (See CONSOLE REMOVAL/INSTALLATION ).
  4. Remove in the order indicated in the illustration.
  5. Install in the reverse order of removal.

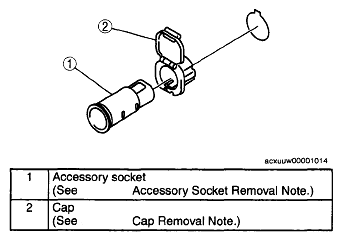

    Fig 1: Identifying Accessory Socket And Cap
    G04861428Courtesy of MAZDA MOTORS CORP.
