Audio Amplifier Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the sub trunk box. (See SUB TRUNK BOX REMOVAL/INSTALLATION ).
  3. Fold the second-row seat backs forward.
  4. Remove in the order indicated in the illustration.
  5. Install in the reverse order of removal.

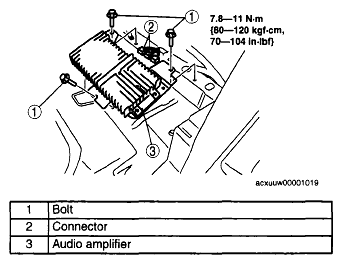

    Fig 1: Removing Order Of Audio Amplifier Replacement Components With Torque Specifications
    G04861396Courtesy of MAZDA MOTORS CORP.
