Sub Trunk Box Removal/Installation

  1. Remove the screws.
  2. Remove the sub trunk box.
  3. Install in the reverse order of removal.

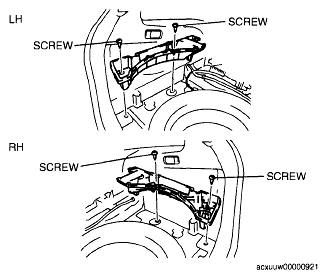

    Fig 1: Identifying Sub Trunk Box Screws
    G04861275Courtesy of MAZDA MOTORS CORP.
