A/C Unit Removal/Installation [L3 With TC]: Notes

  1. Disconnect the negative battery cable.
  2. Discharge the refrigerant from the system. (See REFRIGERANT RECOVERY ). (See REFRIGERANT CHARGING [L3 WITH TC] )
  3. Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [L3 WITH TC] )
  4. Remove the following parts:
    1. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION )
    2. Console (See CONSOLE REMOVAL/INSTALLATION )
    3. Meter hood (See METER HOOD REMOVAL/INSTALLATION )
    4. Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION )
    5. Column cover (See COLUMN COVER REMOVAL/INSTALLATION )
    6. Lower panel (See LOWER PANEL REMOVAL/INSTALLATION )
    7. Steering shaft (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION )
    8. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION )
    9. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION )
    10. Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION )
    11. Side panel (See SIDE PANEL REMOVAL/INSTALLATION )
  5. Remove the dashboard. (See DASHBOARD REMOVAL/INSTALLATION )
  6. Remove in the order indicated in the table. Do not allow compressor oil to spill.

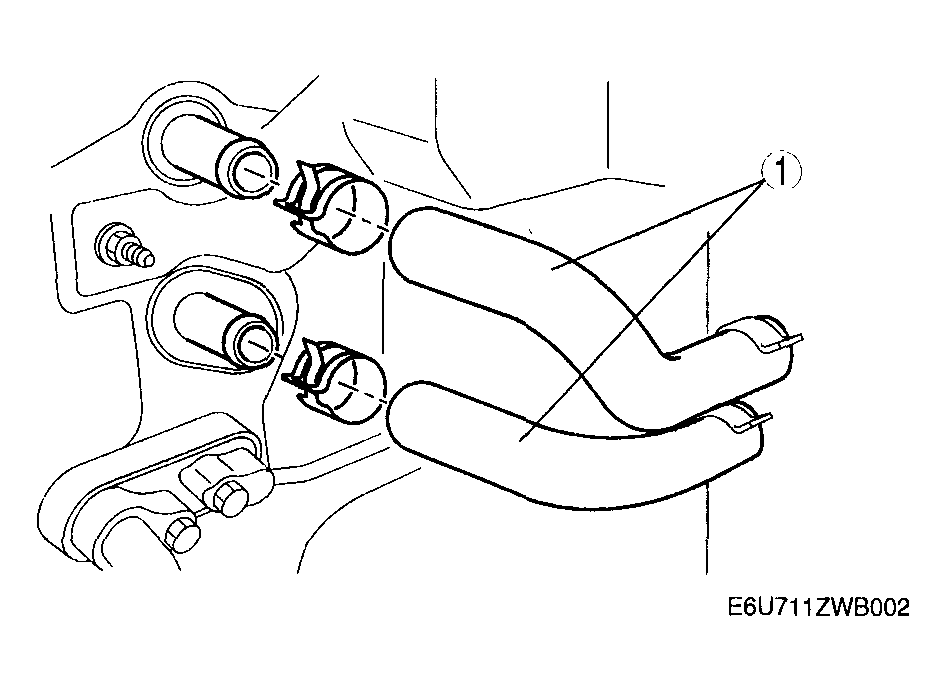

    Fig 1: Heater Hose
    G04326720Courtesy of MAZDA MOTORS CORP.

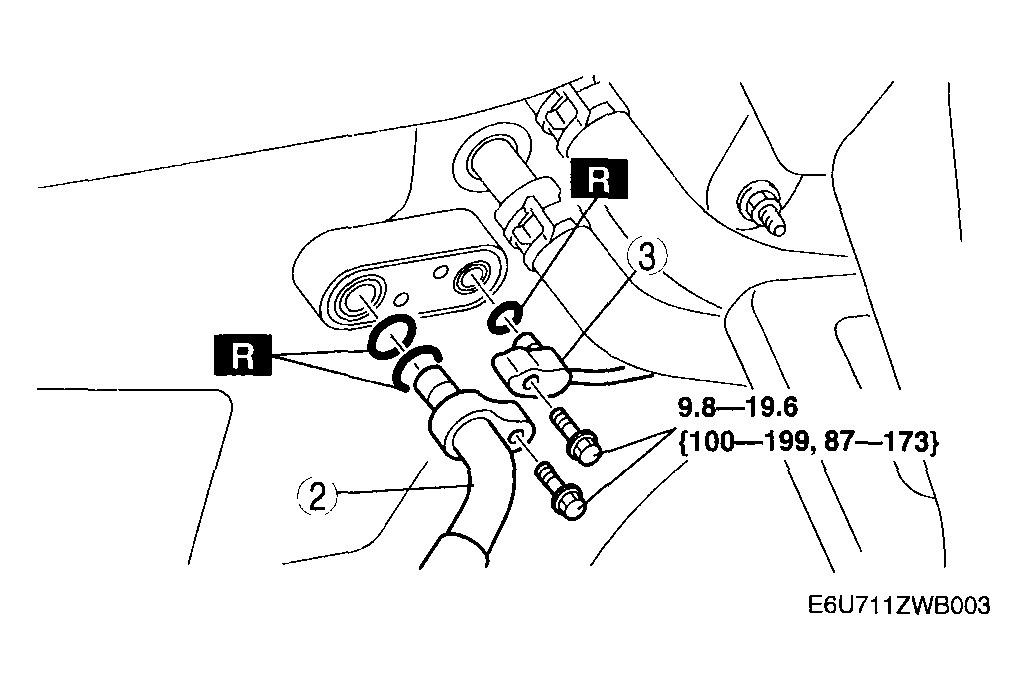

    Fig 2: Cooler Hose (LO), Cooler Pipe No. 3 & Torque Specification
    G04326721Courtesy of MAZDA MOTORS CORP.

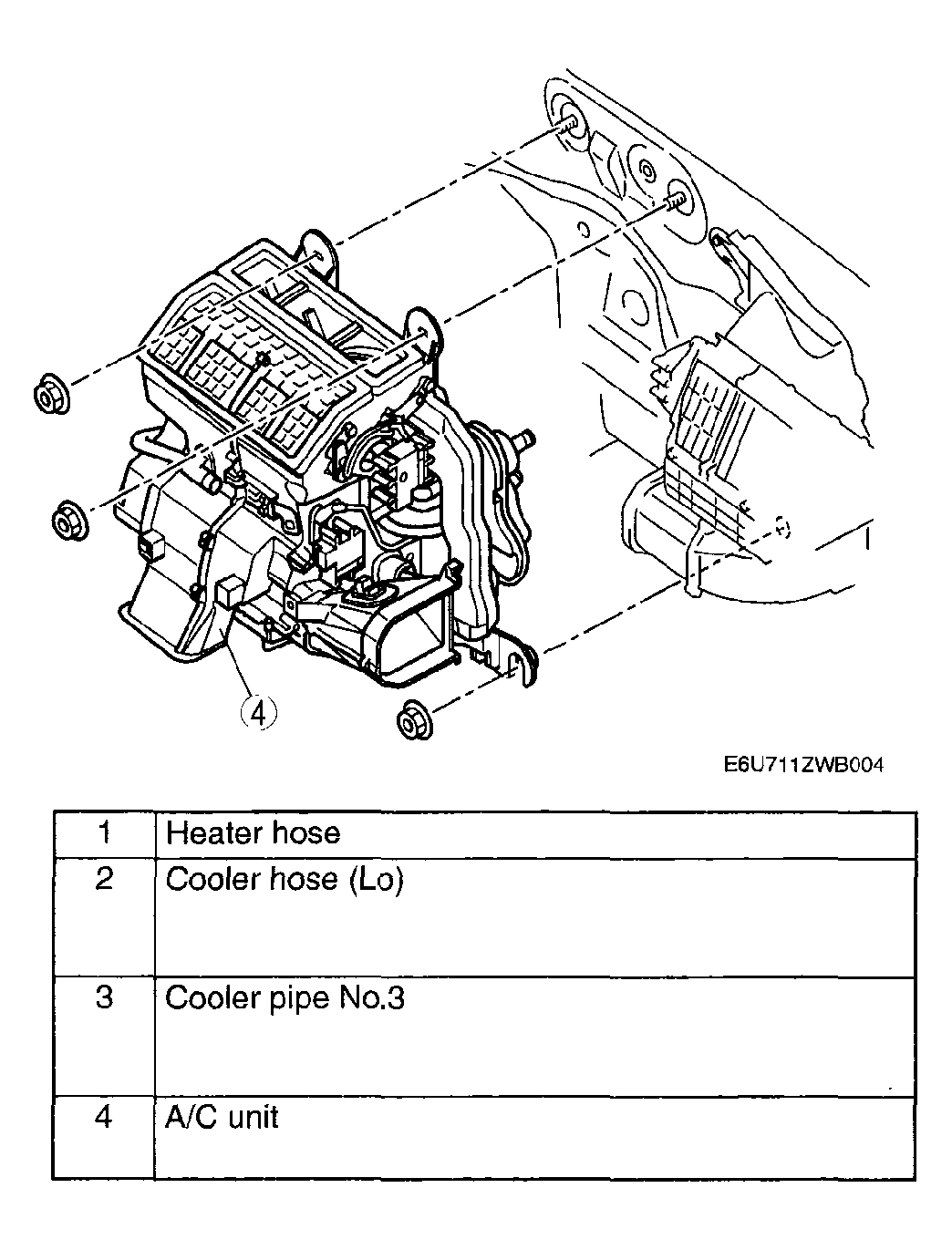

    Fig 3: A/C Unit
    G04326722Courtesy of MAZDA MOTORS CORP.
  7. Install in the reverse order of removal.
  8. Perform the refrigerant system performance test. (See REFRIGERANT SYSTEM PERFORMANCE TEST [L3 WITH TC] )
