Front Side Trim Removal/Installation

  1. Remove the front scuff plate. (See FRONT SCUFF PLATE REMOVAL/INSTALLATION ).
  2. Partially peel back the seaming welt.
  3. Pull the front side trim outward, disengage clip A and the stud bolt, then remove the front side trim.
  4. Install in the reverse order of removal.

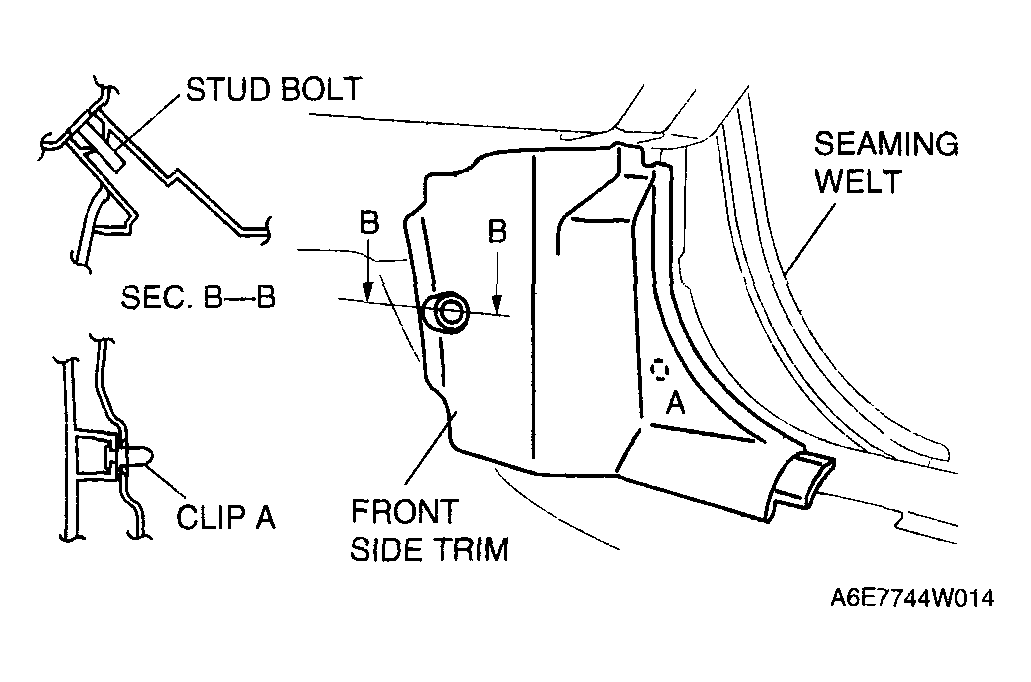

    Fig 1: Front Side Trim
    G04327460Courtesy of MAZDA MOTORS CORP.
