Request Switch Removal/Installation: Deiver-side/passenger-side

  1. Disconnect the negative battery cable.
  2. Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION. )
  3. Remove the front outer handle. (See FRONT OUTER HANDLE REMOVAL/INSTALLATION ).
  4. Remove the screws A, then remove the handle seat and plate.
  5. Remove screw B, then remove the request switch.

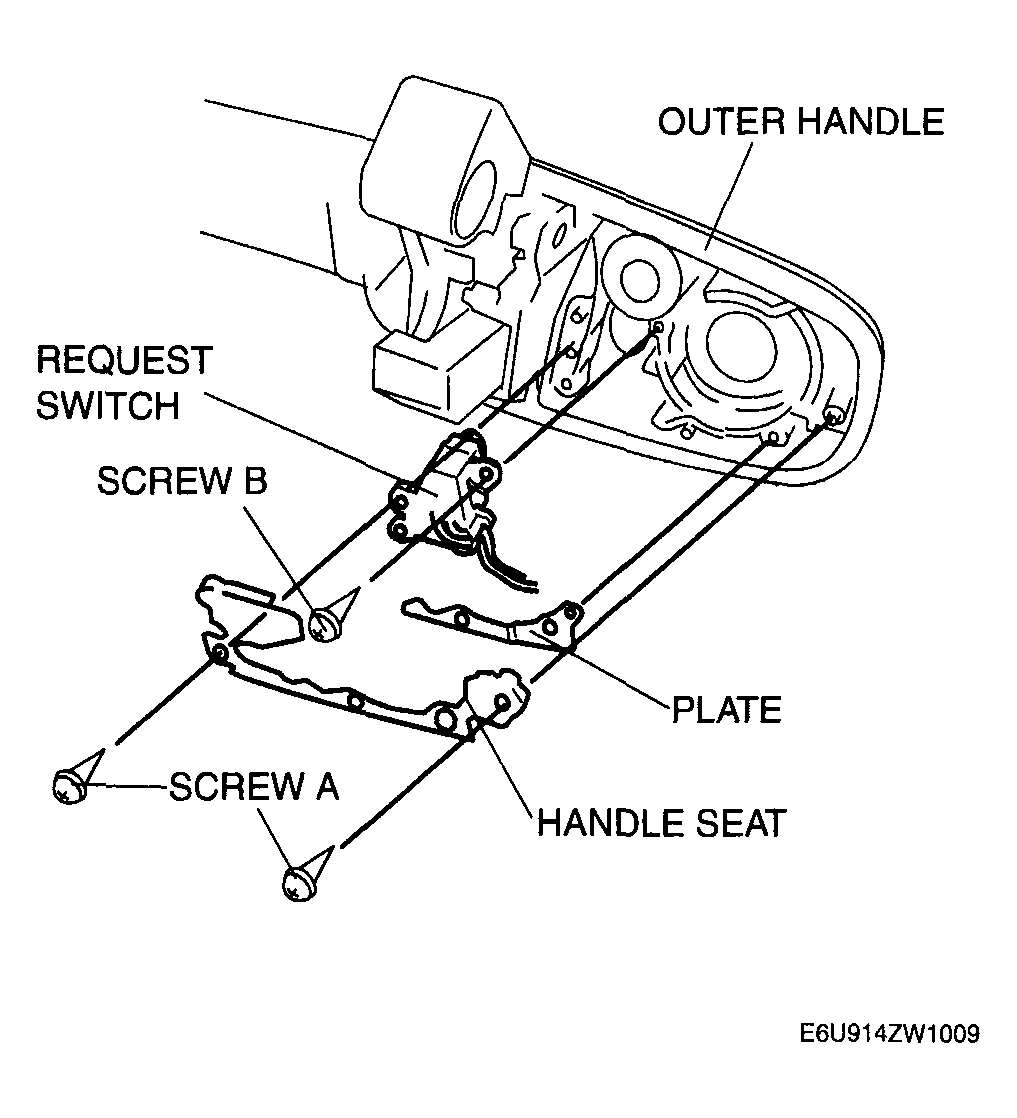

    Fig 1: Request Switch
    G04327345Courtesy of MAZDA MOTORS CORP.
