Dashboard Disassembly/Assembly

  1. Remove the following parts:
    1. Passenger-side air bag module. See PASSENGER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION. )
    2. Ventilator grilles
    3. Center panel unit. See CENTER PANEL UNIT REMOVAL/INSTALLATION. )
    4. LCD unit (vehicles with car-navigation system). See LCD UNIT REMOVAL/INSTALLATION. )
    5. Center box (vehicles without car-navigation system). See CENTER BOX REMOVAL/INSTALLATION ).
    6. Climate control unit. See CLIMATE CONTROL UNIT REMOVAL [L3, AJ]. ) (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [L3 WITH TC]. )
  2. Disassemble in the order indicated in the table.
  3. Assemble in the reverse order of disassembly.

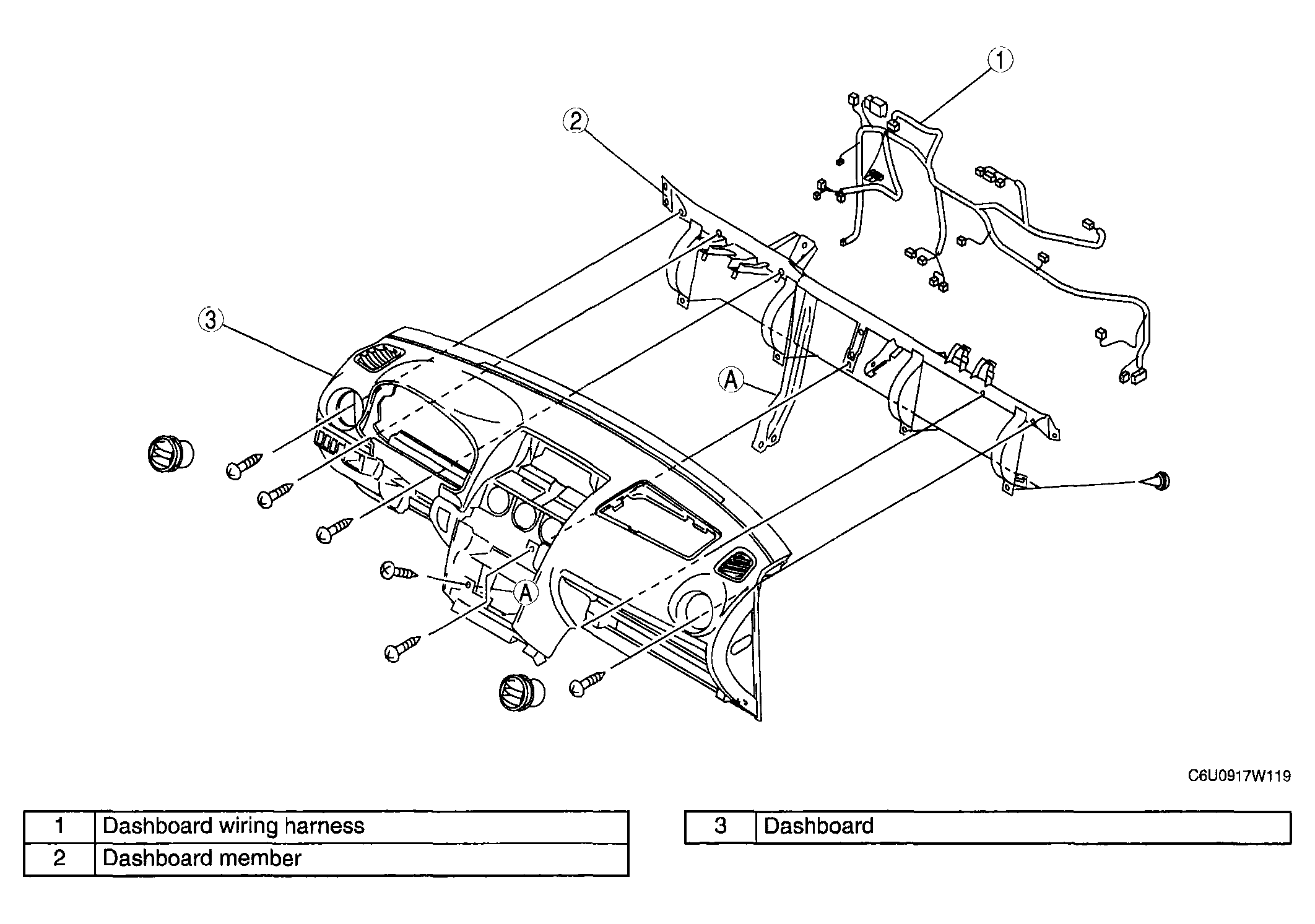

    Fig 1: Disassembling & Assembling Dashboard
    G04327445Courtesy of MAZDA MOTORS CORP.
