Center Box Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the center panel unit. (See CENTER PANEL UNIT REMOVAL/INSTALLATION. )
  3. Remove the screws.
  4. Pull the center box outward, then disengage the tabs.
  5. Disconnect the information display connector.
  6. Install in the reverse order of removal.

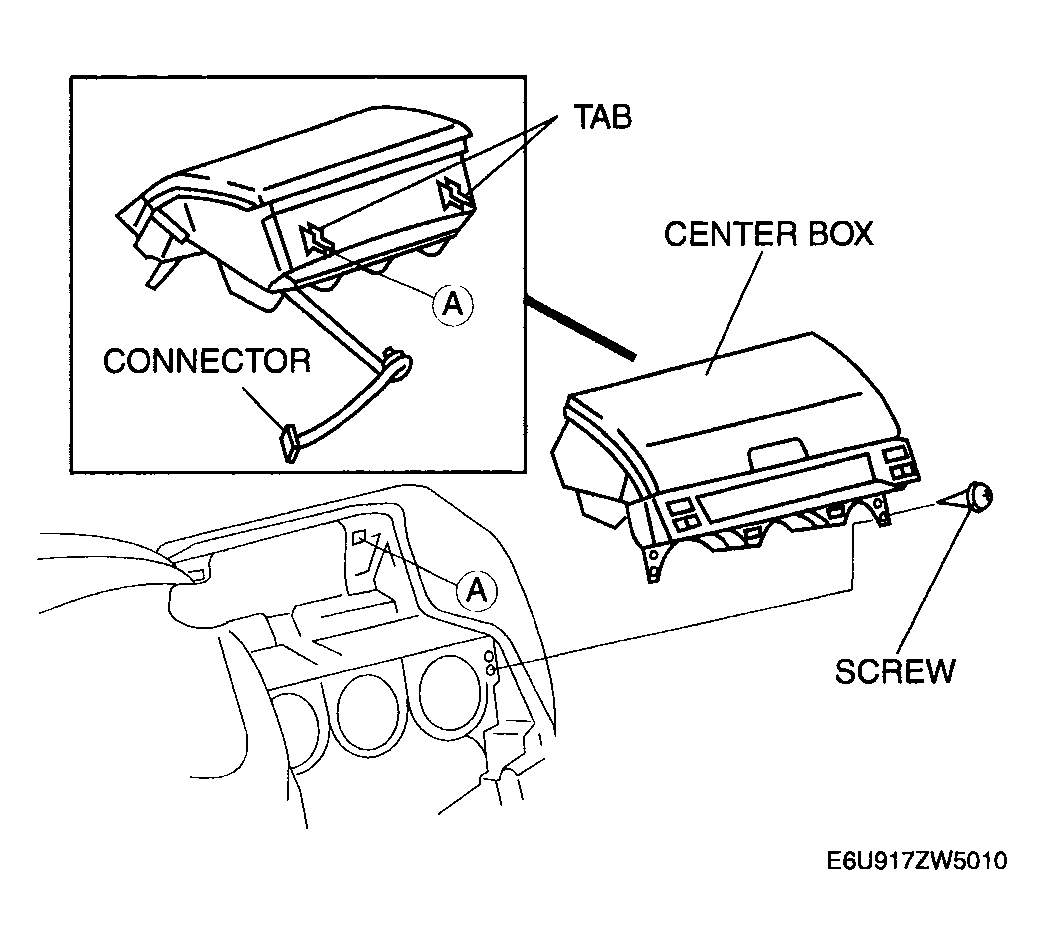

    Fig 1: Center Box
    G04327453Courtesy of MAZDA MOTORS CORP.
