Information Display Removal/Installation

  1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [L3] ).
  2. Disconnect the negative battery cable.
  3. Remove the following parts:
    1. Side wall (See SIDE WALL REMOVAL/INSTALLATION ).
    2. Front console (See FRONT CONSOLE REMOVAL/INSTALLATION ).
    3. Center panel unit (See CENTER PANEL UNIT REMOVAL/INSTALLATION ).
    4. LCD unit (with car-navigation system) (See LCD UNIT REMOVAL/INSTALLATION ).
    5. Dashboard center panel (without car-navigation system) (See DASHBOARD CENTER PANEL REMOVAL/INSTALLATION ).
  4. Remove in the order indicated in the table.

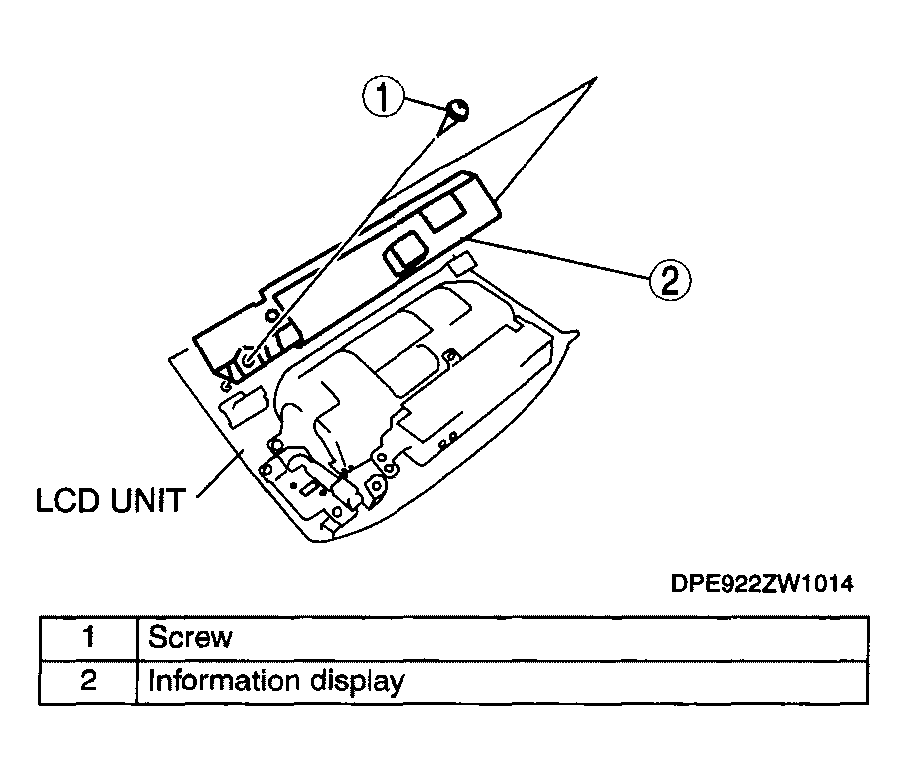

    Fig 1: Removing/Installing Information Display
    G04317554Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
