Sliding Door Module Removal/Installation

  1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [L3] ).
  2. Disconnect the negative battery cable.
  3. Remove the following parts:
    1. Side door garnish (See SIDE DOOR GARNISH REMOVAL/INSTALLATION ).
    2. Rear side trim (See REAR SIDE TRIM REMOVAL/INSTALLATION ).
    3. Sliding door trim (See SLIDING DOOR TRIM REMOVAL/INSTALLATION ).
    4. Sliding door glass (See SLIDING DOOR GLASS REMOVAL/INSTALLATION ).
    5. Sliding door remote controller (See SLIDING DOOR LOCK ACTUATOR REMOVAL/INSTALLATION ).
  4. Disconnect the power window motor connector.
  5. Remove the bolts, then remove the constant power supply wiring harness protector.

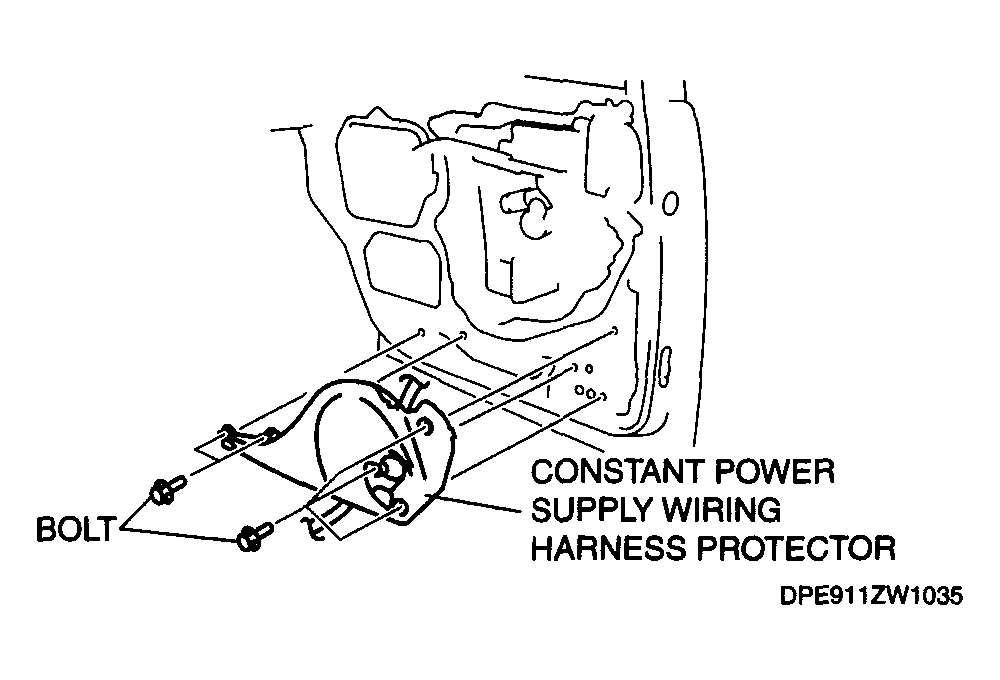

    Fig 1: Removing Constant Power Supply Wiring Harness Protector
    G04317102Courtesy of MAZDA MOTORS CORP.
  6. Remove screws A and the fastener.
  7. Remove the sliding door module.
  8. Install in the reverse order of removal.

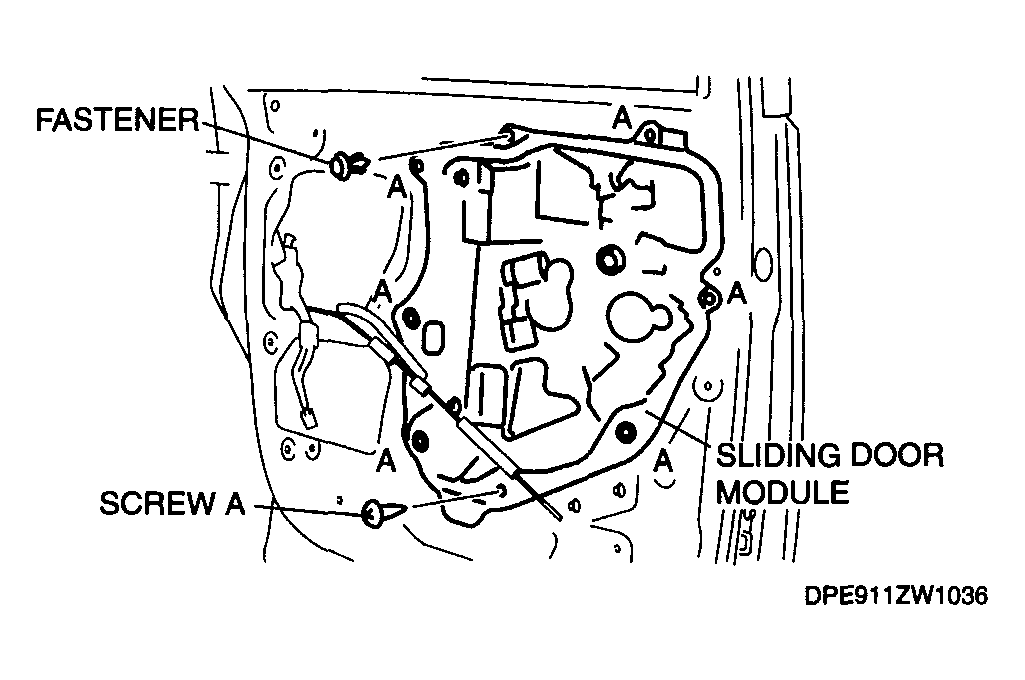

    Fig 2: Removing Sliding Door Module
    G04317103Courtesy of MAZDA MOTORS CORP.
