Sliding Door Glass Removal/Installation

  1. Fully open the sliding door glass.
  2. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [L3] ).
  3. Disconnect the negative battery cable.
  4. Remove the side door garnish. (See SIDE DOOR GARNISH REMOVAL/INSTALLATION ).
  5. Remove the rear side trim. (See REAR SIDE TRIM REMOVAL/INSTALLATION ).
  6. Remove the sliding door trim. (See SLIDING DOOR TRIM REMOVAL/INSTALLATION ).
  7. Remove the bolt and screw.

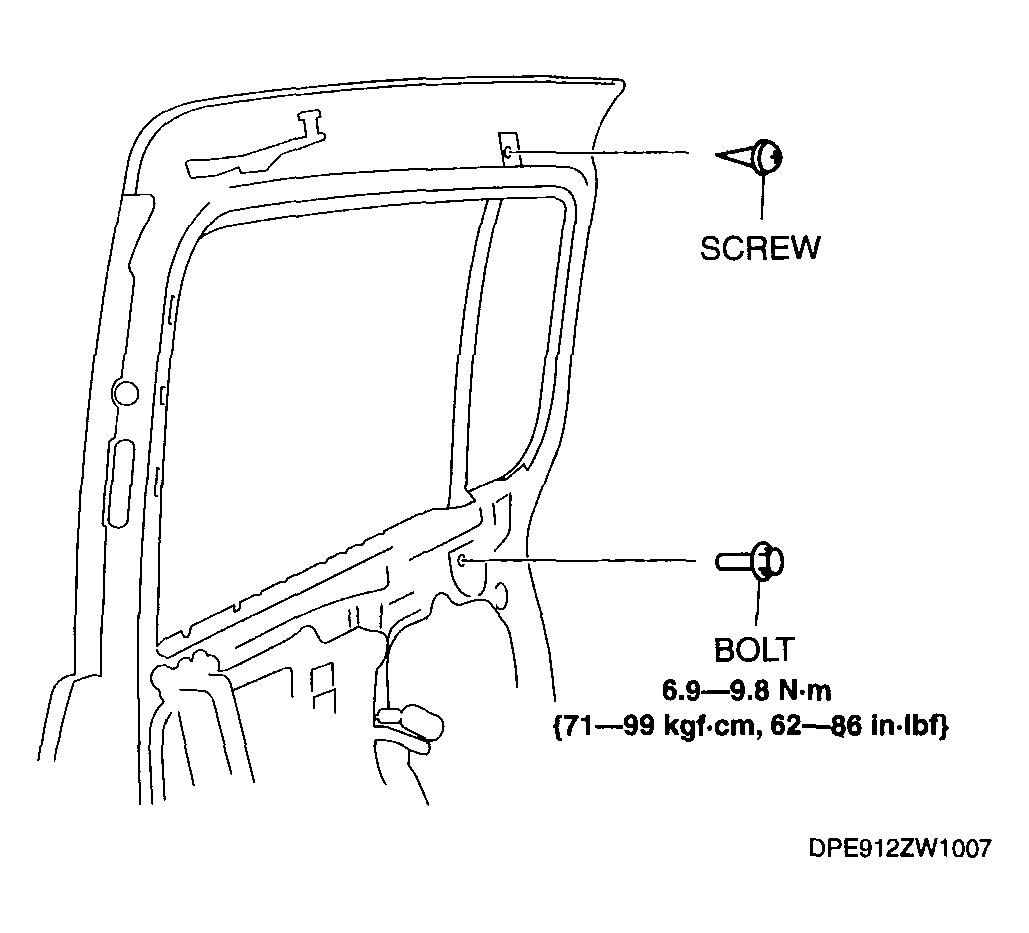

    Fig 1: Sliding Door Trim & Torque Specification
    G04317112Courtesy of MAZDA MOTORS CORP.
  8. Remove the rear door glass guide and glass run channel as a single unit.
  9. Connect the power window subswitch connector.
  10. Connect the negative battery cable.
    Fig 2: Removing Rear Door Glass Guide And Glass Run Channel
    G04317113Courtesy of MAZDA MOTORS CORP.
  11. Adjust the door glass position as shown in the figure.
    Fig 3: Position For Adjusting Door Glass
    G04317114Courtesy of MAZDA MOTORS CORP.
  12. Remove the hole cover.
  13. Remove the screw.
  14. Lift the sliding door glass up and remove it by sliding it to the vehicle rear.
  15. Install in the reverse order of removal.

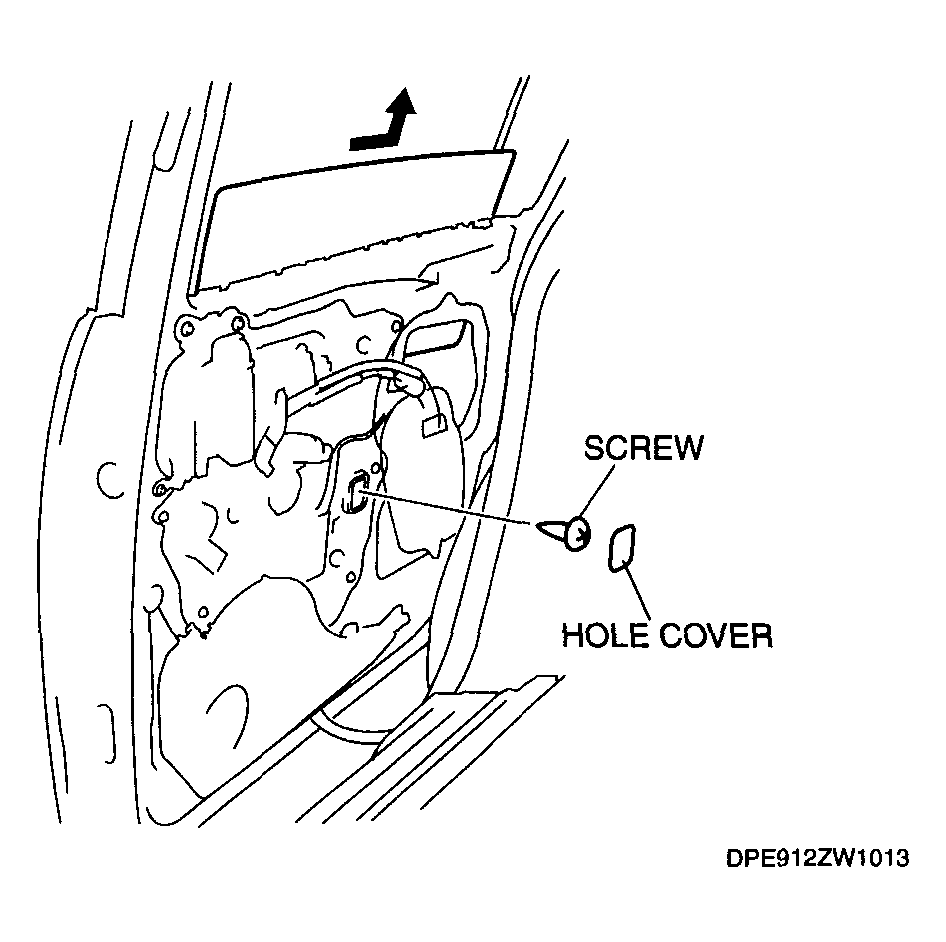

    Fig 4: Removing Screw And Hole Cover
    G04317115Courtesy of MAZDA MOTORS CORP.
