Front Door Module Removal/Installation

  1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [L3] ).
  2. Disconnect the negative battery cable.
  3. Remove the following parts:
    1. Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION ).
    2. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION ).
    3. Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION ).
    4. Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION ).
    5. Inner handle (See FRONT INNER HANDLE REMOVAL/INSTALLATION ).
  4. Disconnect the power outer mirror connector.
  5. Disconnect the front door wiring harness connector. (See FRONT DOOR REMOVAL/INSTALLATION ).
  6. Remove the tab, then remove the front door wiring harness bracket.

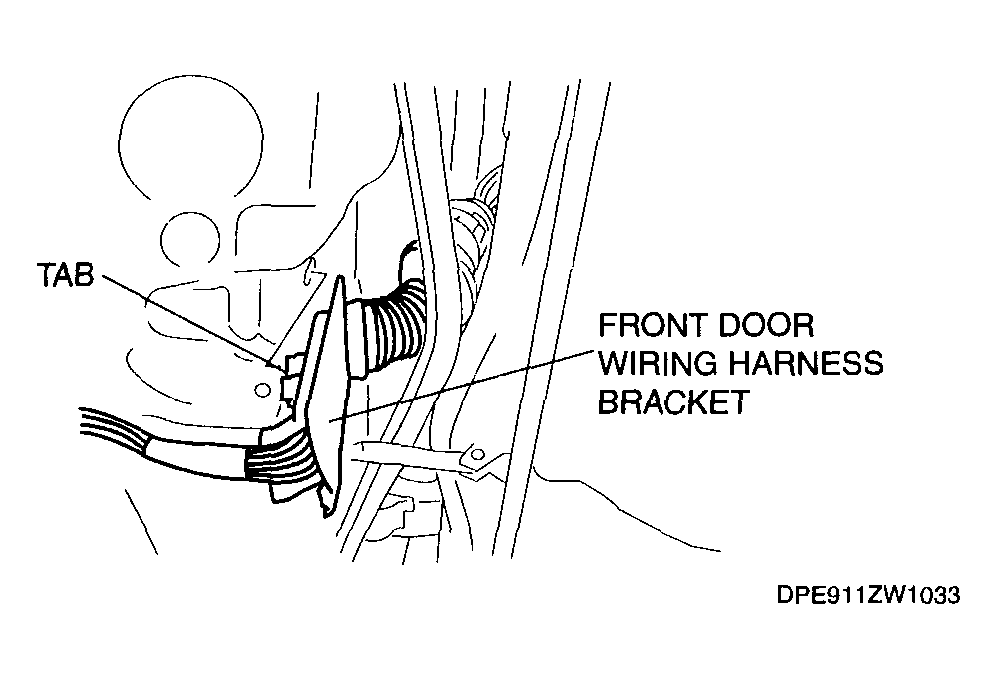

    Fig 1: Removing Front Door Wiring Harness Bracket
    G04317100Courtesy of MAZDA MOTORS CORP.
  7. Remove screws A and the fastener.
  8. Remove the front door module.
  9. Install in the reverse order of removal.

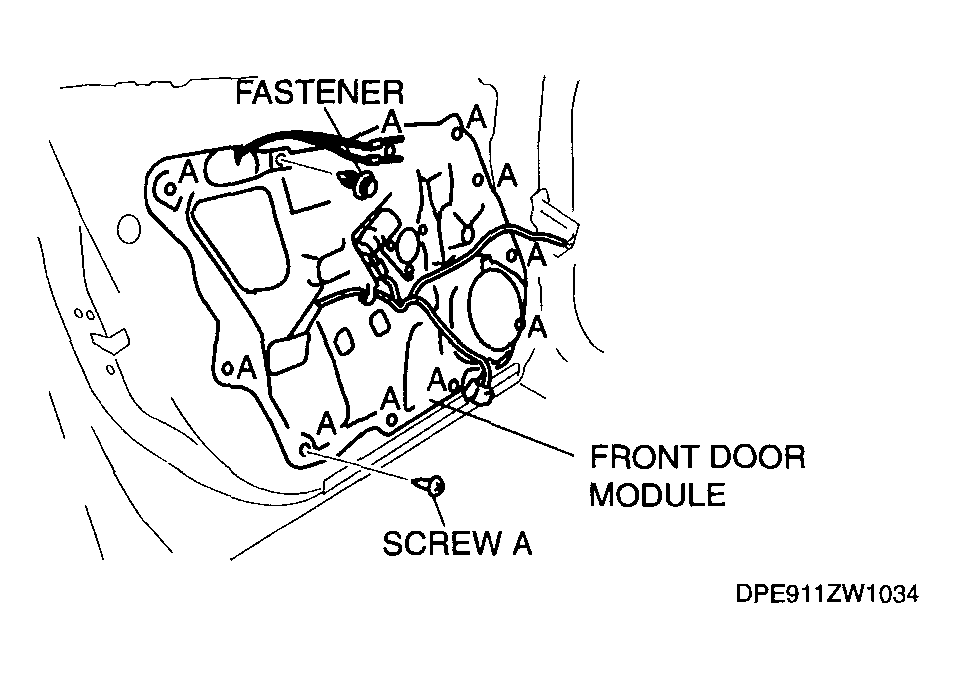

    Fig 2: Removing Front Door Module
    G04317101Courtesy of MAZDA MOTORS CORP.
