Front Door Glass Removal/Installation

  1. Adjust the door glass position as shown in the figure.
  2. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [L3] ).
  3. Disconnect the negative battery cable.
  4. Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION ).
  5. Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION ).
  6. Remove the front door speaker. (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION ).
    Fig 1: Position For Adjusting Door Glass
    G04317108Courtesy of MAZDA MOTORS CORP.
    NOTE:
    • When installing the front door glass, the front door speaker must be removed to align the glass edge with the glass run channel by hand through the speaker installation hole.
  7. Remove the hole cover.
  8. Remove the screws.
  9. Lift the front door glass up and remove it in the direction of the arrow.
  10. Install in the reverse order of removal.

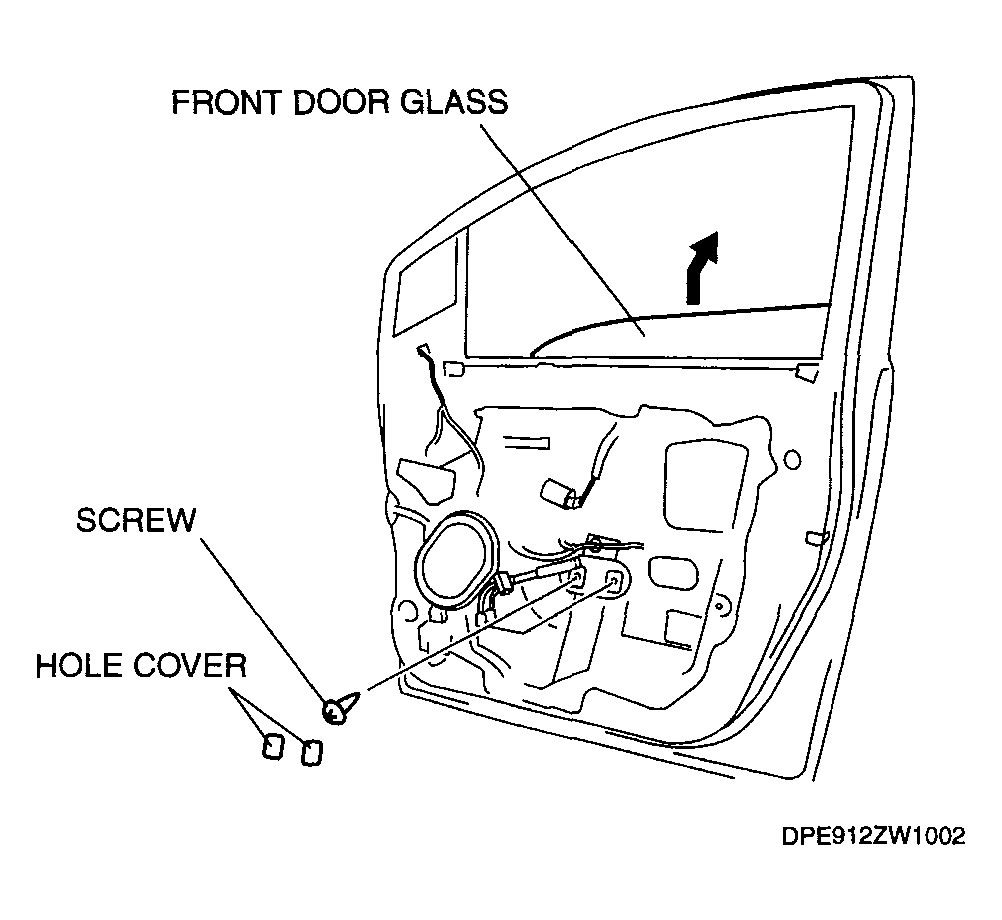

    Fig 2: Removing Front Door Glass
    G04317109Courtesy of MAZDA MOTORS CORP.
