Sliding Door Latch Removal/Installation

  1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [L3] ).
  2. Disconnect the negative battery cable.
  3. Remove the following parts:
    1. Sliding door trim (See SLIDING DOOR TRIM REMOVAL/INSTALLATION ).
    2. Cover (See SLIDING DOOR MODULE REMOVAL/INSTALLATION ).
  4. Remove in the order indicated in the table, refer to illustration.

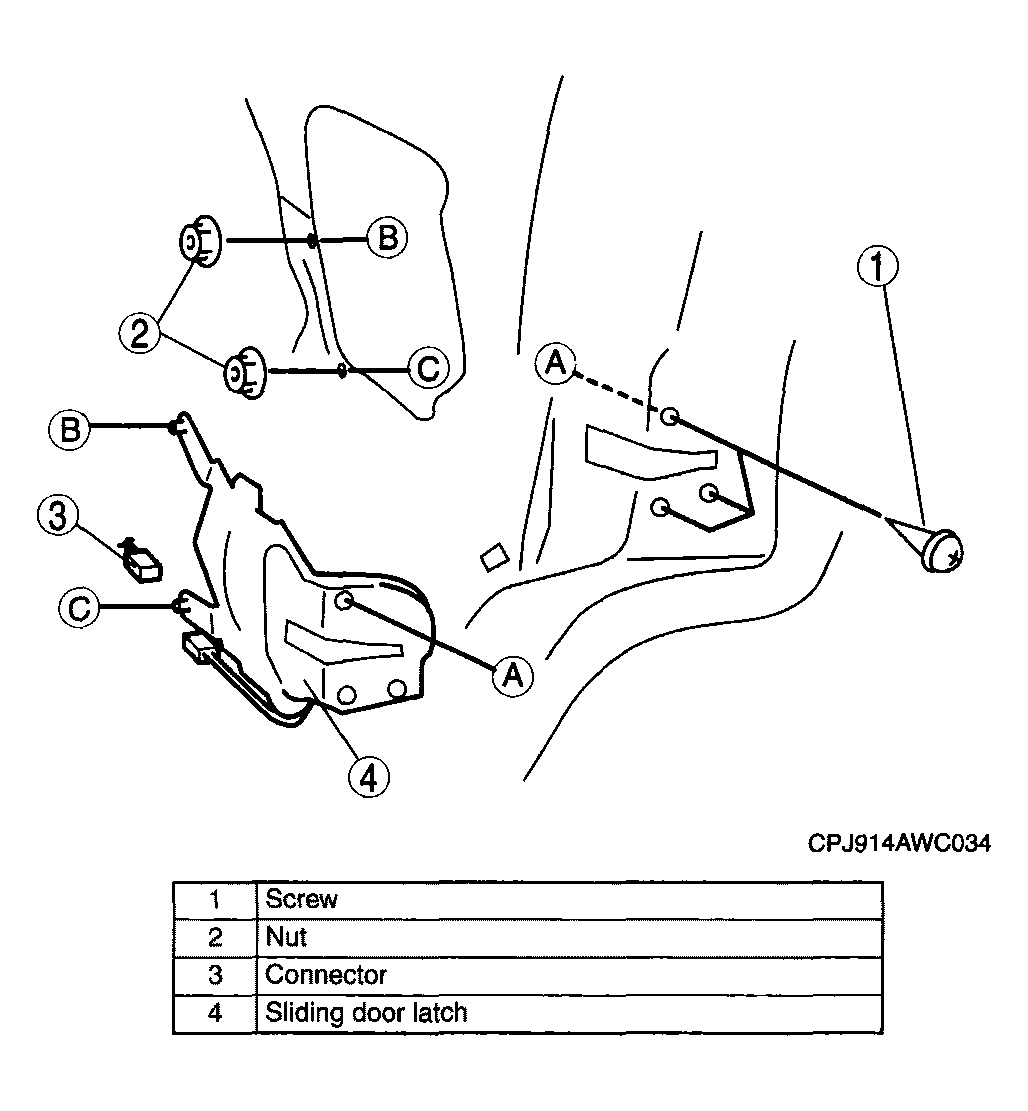

    Fig 1: Removing/Installing Sliding Door Latch
    G04317222Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
