Accessory Socket Removal/Installation: Notes

  1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [L3] ).
  2. Disconnect the negative battery cable.
  3. Remove the following parts:
    1. Rear package tray lid (See REAR PACKAGE TRAY LID REMOVAL/INSTALLATION ).
    2. Third-row seat (See THIRD-ROW SEAT REMOVAL/INSTALLATION ).
    3. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION ).
    4. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION ).
    5. Lower anchor of the third-row seat belt (See THIRD-ROW SEAT BELT REMOVAL/INSTALLATION ).
    6. Cargo compartment light (See CARGO COMPARTMENT LIGHT REMOVAL/INSTALLATION ).
    7. Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION ).
  4. Remove in the order indicated in the table.

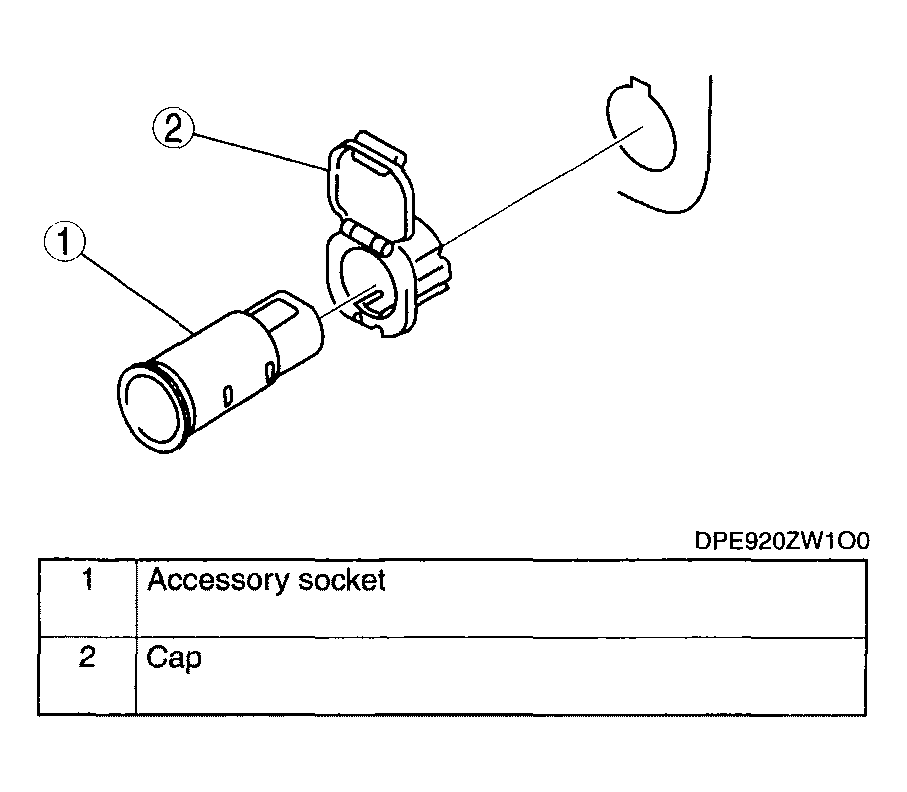

    Fig 1: Removing Accessory Socket
    G04317483Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
