Third-Row Seat Removal/Installation

  1. Remove the rear package tray lid. (See REAR PACKAGE TRAY LID REMOVAL/INSTALLATION ).
  2. Remove the floor covering installation fasteners. (See FLOOR COVERING REMOVAL/INSTALLATION ).
  3. Remove the covers.
  4. Remove the bolts, then remove the third-row seat.
  5. Install in the reverse order of removal.

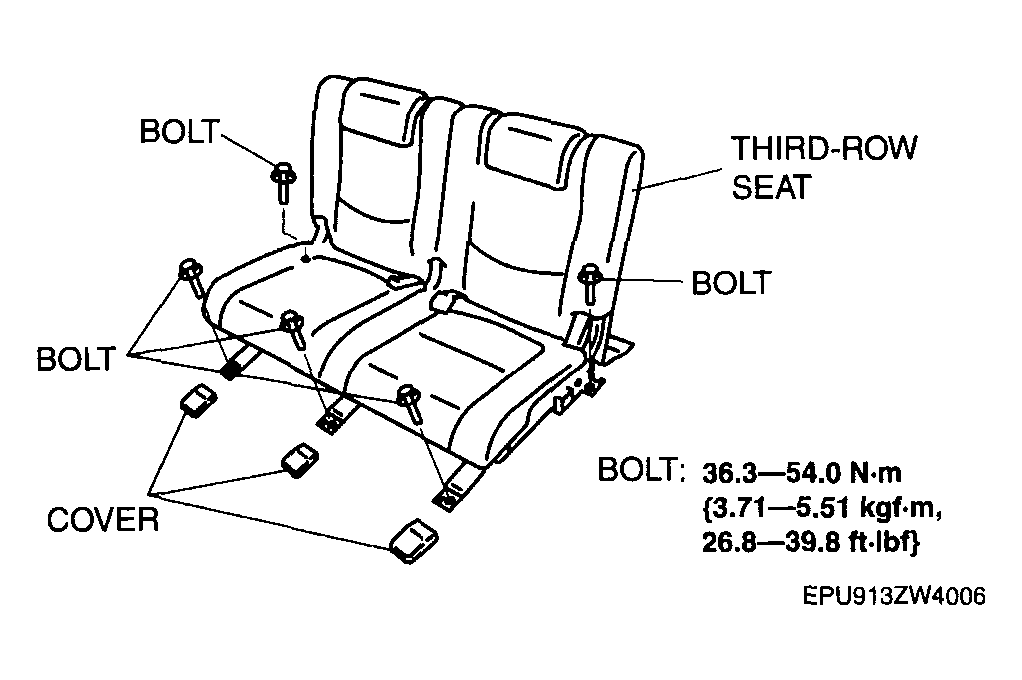

    Fig 1: Third-Row Seat Mounting Bolt & Torque Specification
    G04317198Courtesy of MAZDA MOTORS CORP.
