Interior, Rear

  1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] .)
  2. Remove the console. (See CONSOLE REMOVAL/INSTALLATION .)
  3. Remove the back trim. (See BACK TRIM REMOVAL/INSTALLATION .)
  4. Remove the nuts.
  5. Disconnect the connector, then remove the keyless antenna.

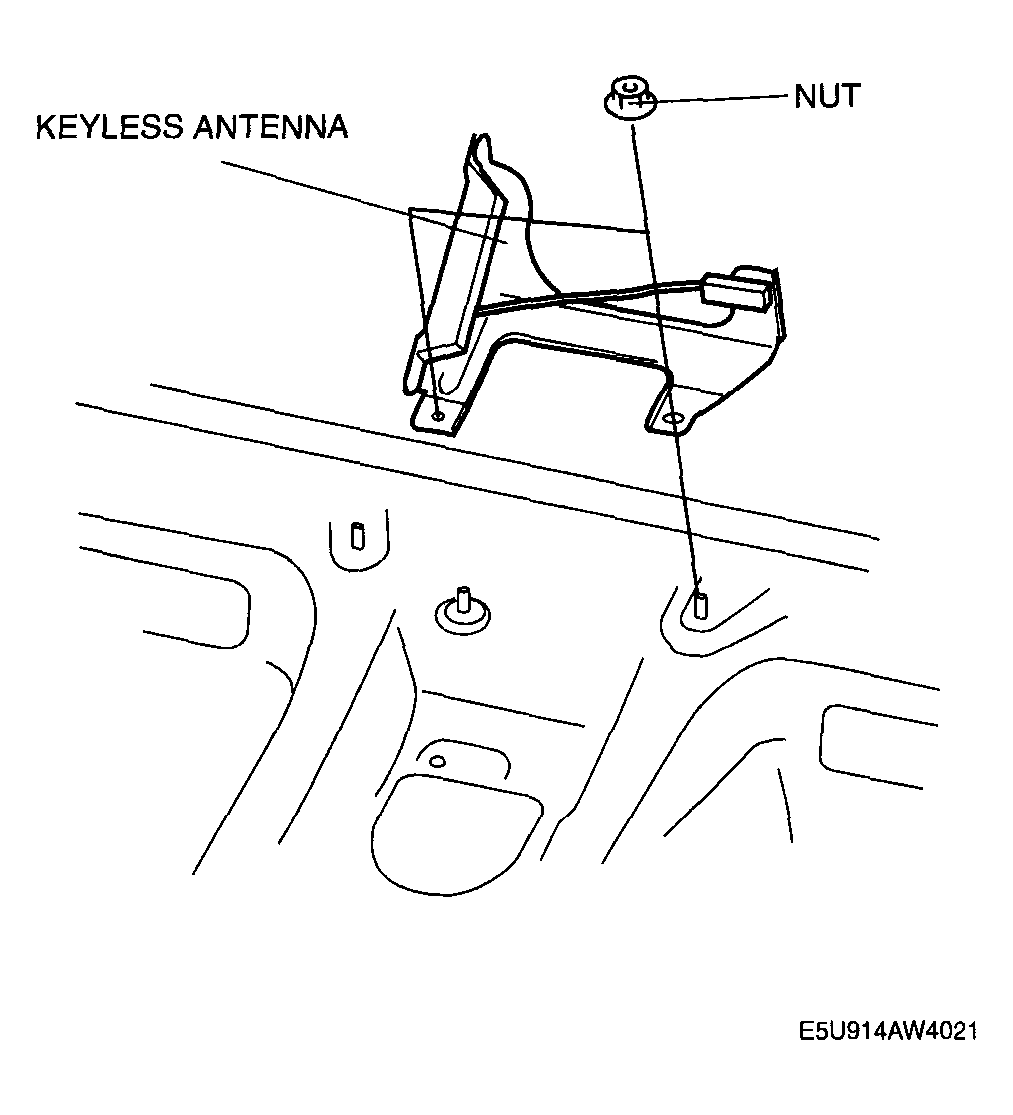

    6. Fig 1: Removing Keyless Antenna Interior - Rear
    G04323545Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
