Console Removal/Installation

  1. Remove the battery cover.
  2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] .)
  3. Remove the selector lever knob (AT), shift lever knob (MT).
  4. Remove in the order indicated in Fig 1 .

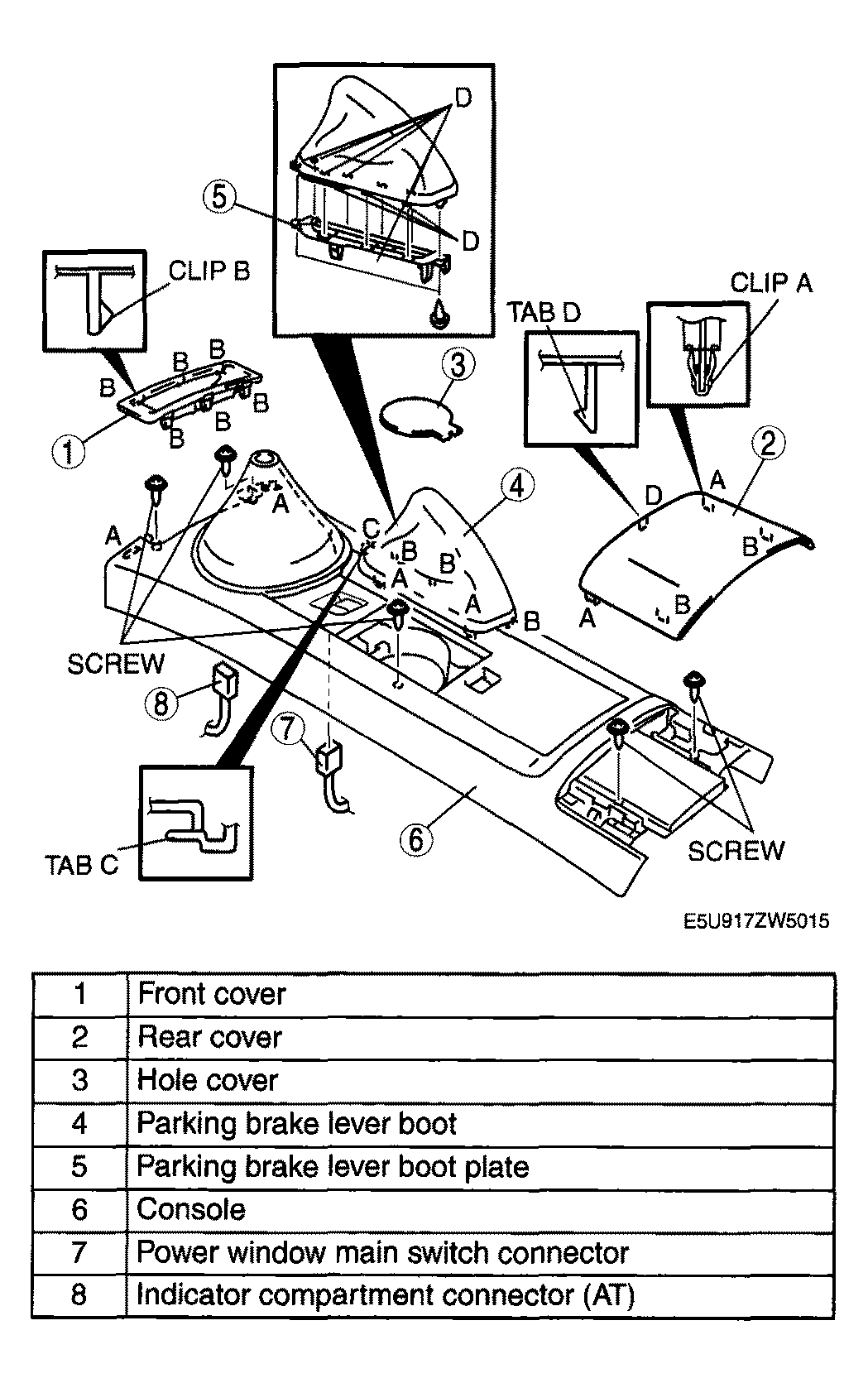

    Fig 1: Removing/Installing Console
    G04323644Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
