Interior, Middle

  1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] .)
  2. Remove the console. (See CONSOLE REMOVAL/INSTALLATION .)
  3. Remove the side wall. (See SIDE WALL REMOVAL/INSTALLATION .)
  4. Remove the console panel. (See CONSOLE PANEL REMOVAL/INSTALLATION .)
  5. Remove the clips.
  6. Disconnect the connector, then remove the keyless antenna.

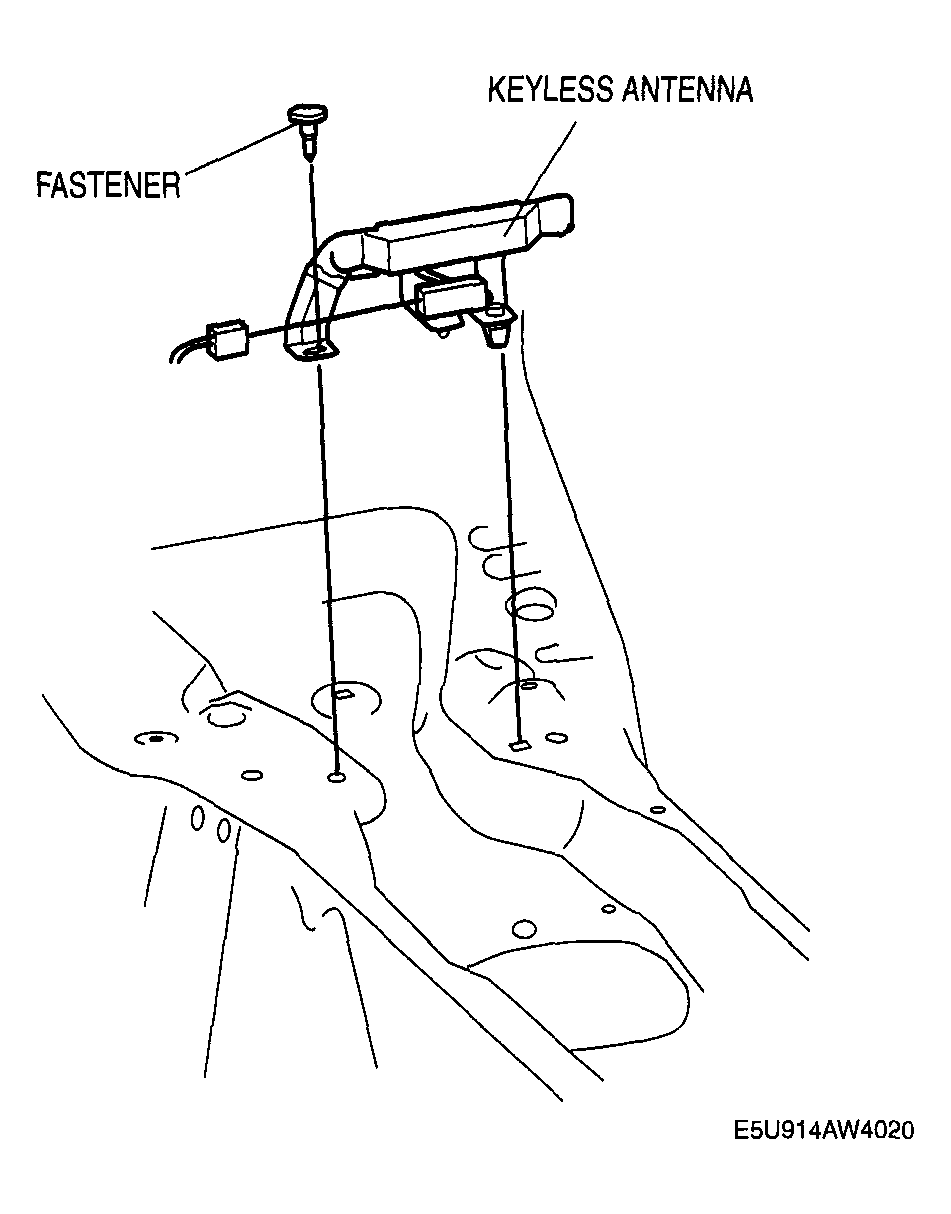

    7. Fig 1: Removing Keyless Antenna - Interior Middle
    G04323544Courtesy of MAZDA MOTORS CORP.
  7. Install in the reverse order of removal.
