Long Slider And Adapter Removal/Installation

  1. Remove the second-row seat. (See SECOND-ROW SEAT REMOVAL  and/or SECOND-ROW SEAT INSTALLATION .)
  2. Remove the front floor covering. (See FRONT FLOOR COVERING REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in Fig 1.
  4. Install in the reverse order of removal.

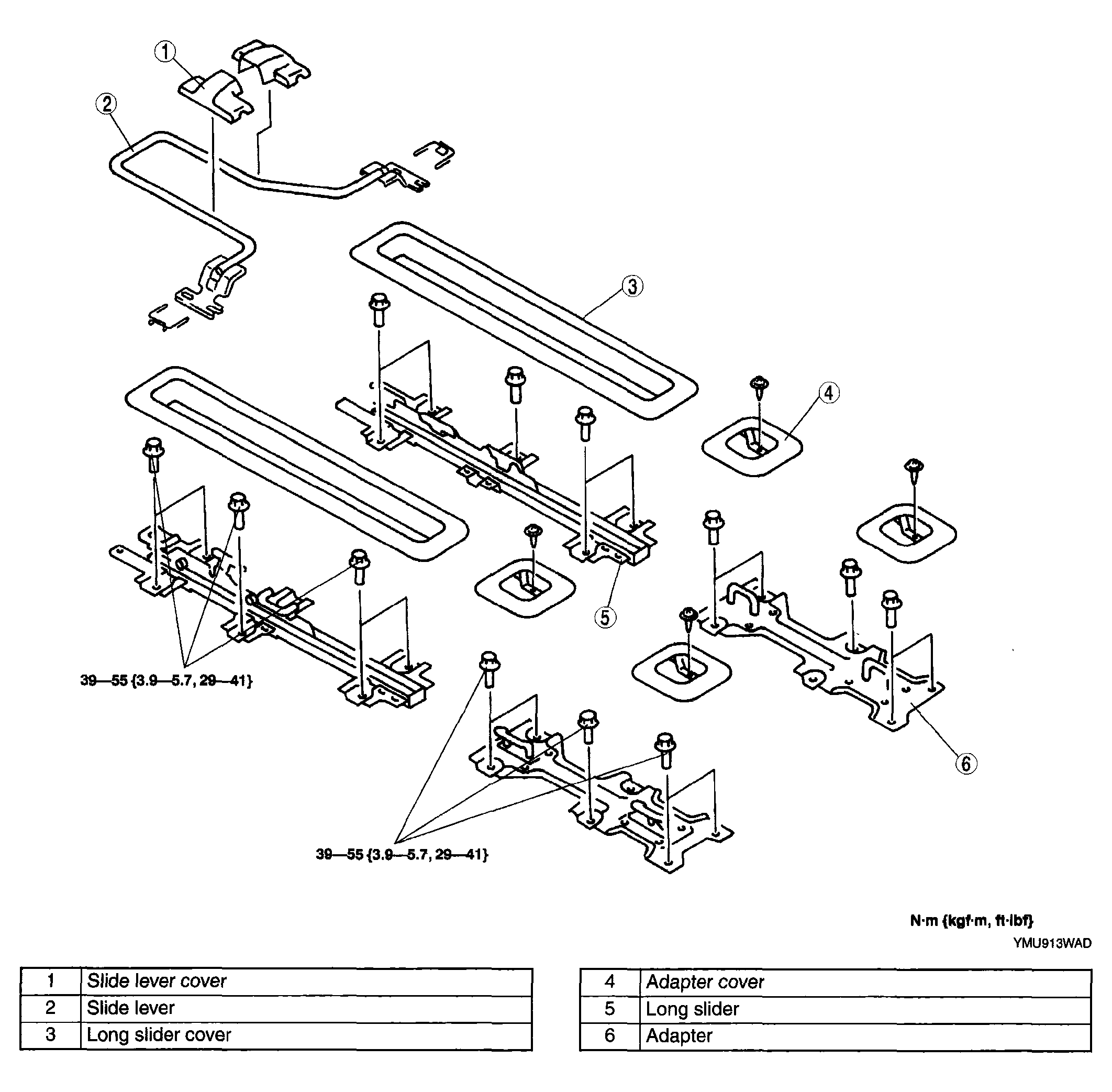

    Fig 1: Long Slider And Adapter With Torque Specifications
    G04329497Courtesy of MAZDA MOTORS CORP.
