Second-Row Seat Removal

  1. Place the buckle in the pocket in the cushion.
  2. Slide the seat to the rear-most position.
  3. Pull the recliner lever and lower the seat back forward.
  4. Lift and hold the seat-anchor bar and lift the entire seat up and forward.
    Fig 1: Lifting And Holding Seat-Anchor Bar
    G04329492Courtesy of MAZDA MOTORS CORP.
  5. Remove the second-row seat.

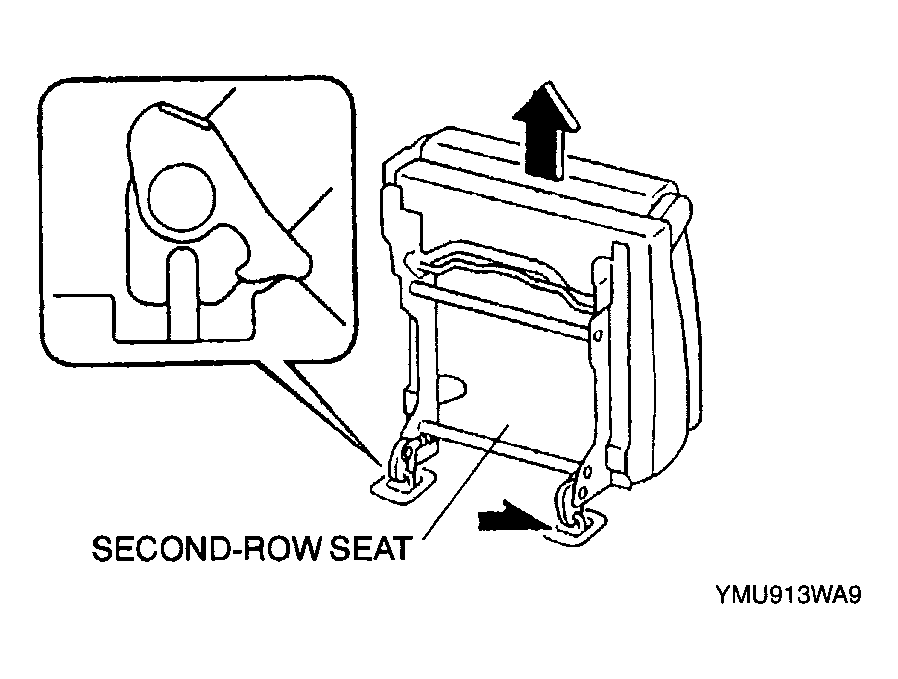

    Fig 2: Removing Second-Row Seat
    G04329493Courtesy of MAZDA MOTORS CORP.
