Driver-Side Air Bag Module Removal/Installation [Two-Step Deployment Control System]: Notes

WARNING:

Handling the air bag module improperly can accidentally deploy the air bag module, which may seriously injure you. Read the service warnings and cautions before handling the air bag module. (See SERVICE WARNINGS and SERVICE CAUTIONS .)

Turn the ignition switch to the LOCK position.
Disconnect the negative battery cable and wait for 1 min or more.
Remove in the order indicated in Fig 1.

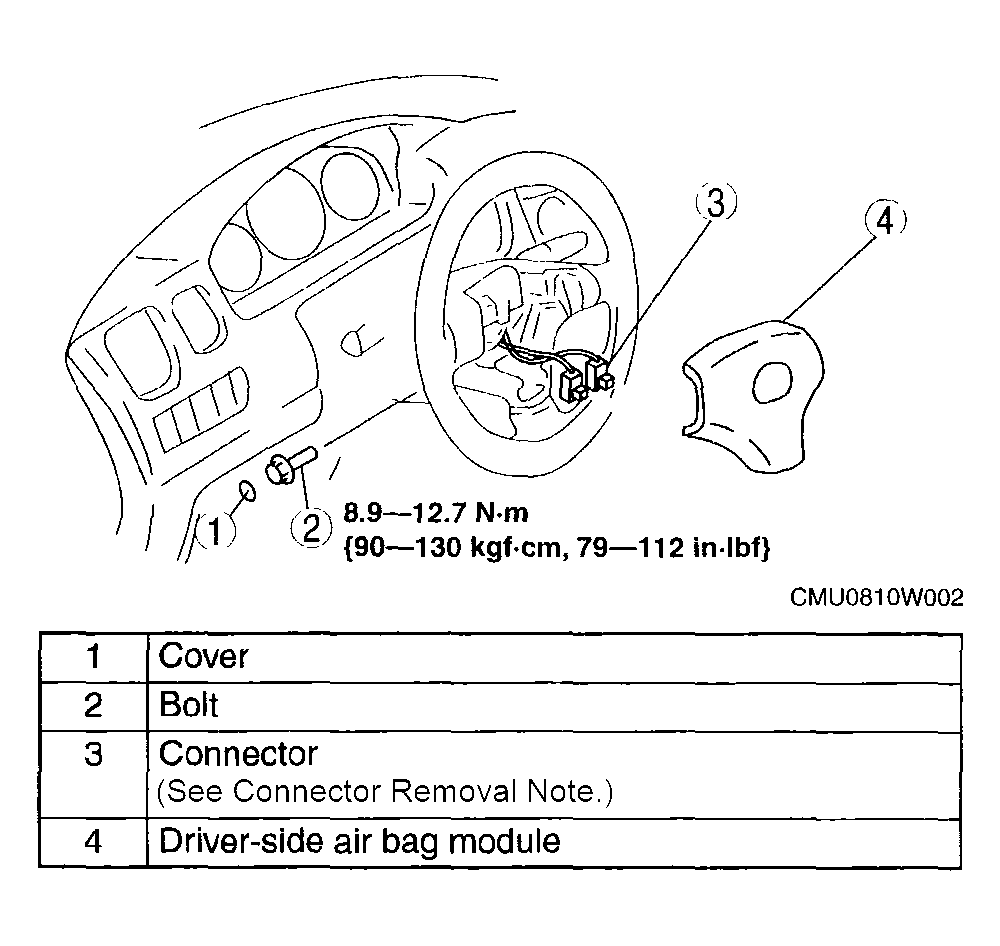

Fig 1: Removing/Installing Driver-Side Air Bag Module With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
Turn the ignition switch to the ON position.
Verify that the air bag system warning light illuminates for approx. 6 s and goes out.

If the air bag system warning light does not operate, refer to ON-BOARD DIAGNOSTIC (TWO-STEP DEPLOYMENT CONTROL SYSTEM) and perform inspection of the system.
