Lower Module Removal/Installation: Notes

1. Disconnect the negative battery cable.
2. Remove the audio unit. (See AUDIO UNIT REMOVAL/INSTALLATION .)
3. Remove in the order indicated in Fig 1.
4. Install in the reverse order of removal.

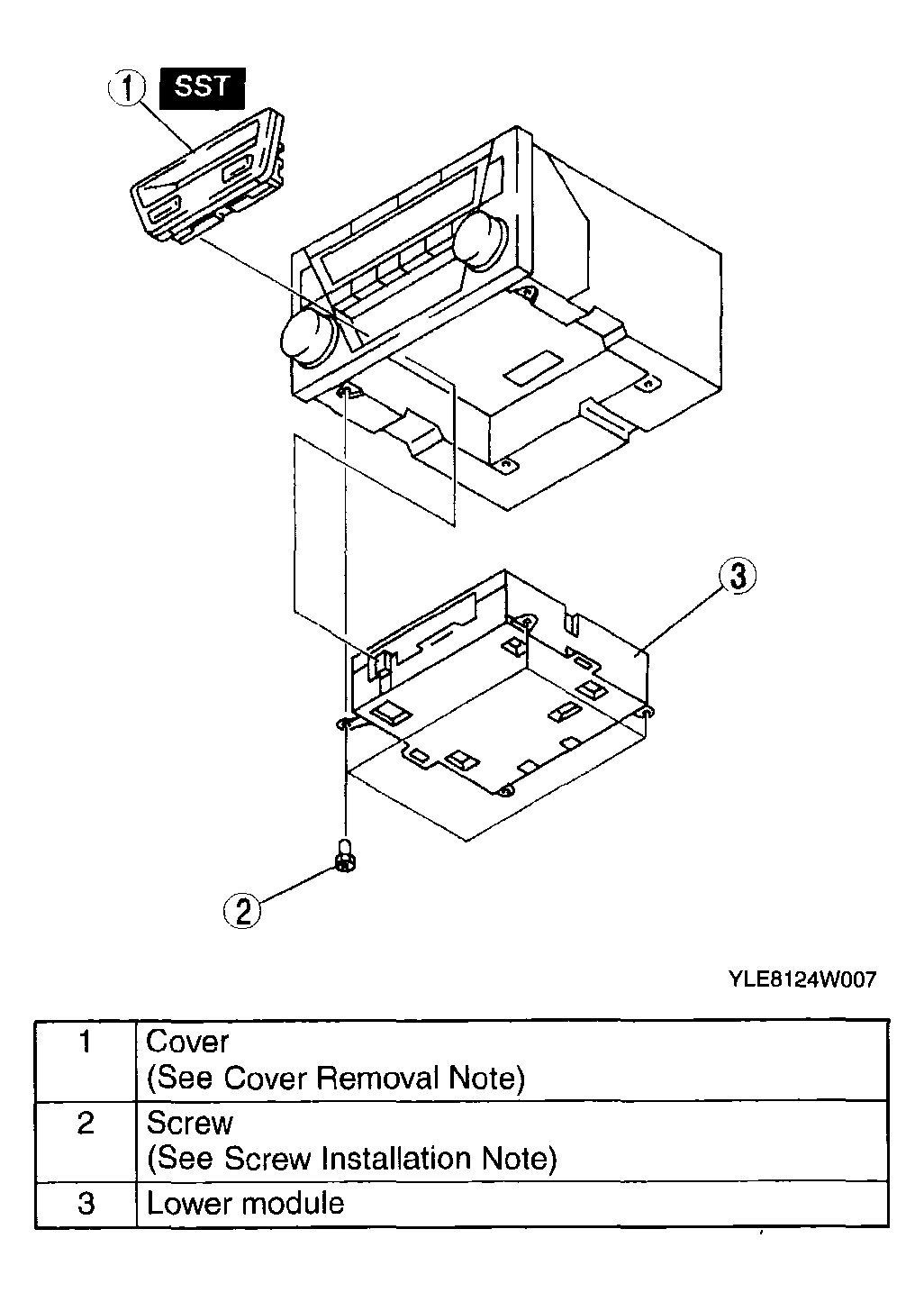

Fig 1: Lower Module

Courtesy of MAZDA MOTORS CORP.
