Shift-Lock Solenoid Inspection

Disconnect the negative battery cable.
Remove the console. (See CONSOLE REMOVAL/INSTALLATION ).
Disconnect the selector lever component connector.
Measure the continuity between terminals E and F.
- If there is any malfunction, replace the selector lever component. (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION ).

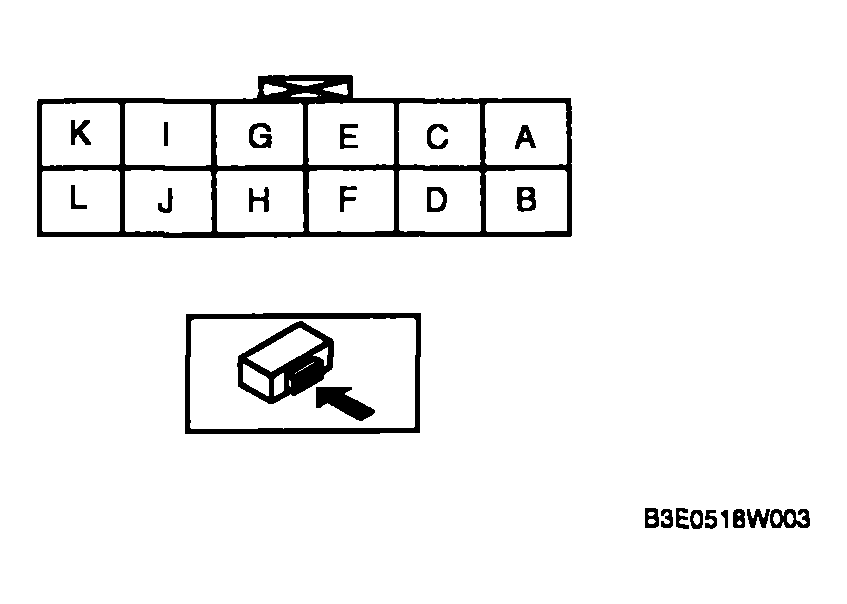

  Fig 1: Identifying Shift-Lock Solenoid Connector Terminals
  Courtesy of MAZDA MOTORS CORP.
