Console Removal/Installation

  1. Detach clips A, B and C and remove the upper panel.

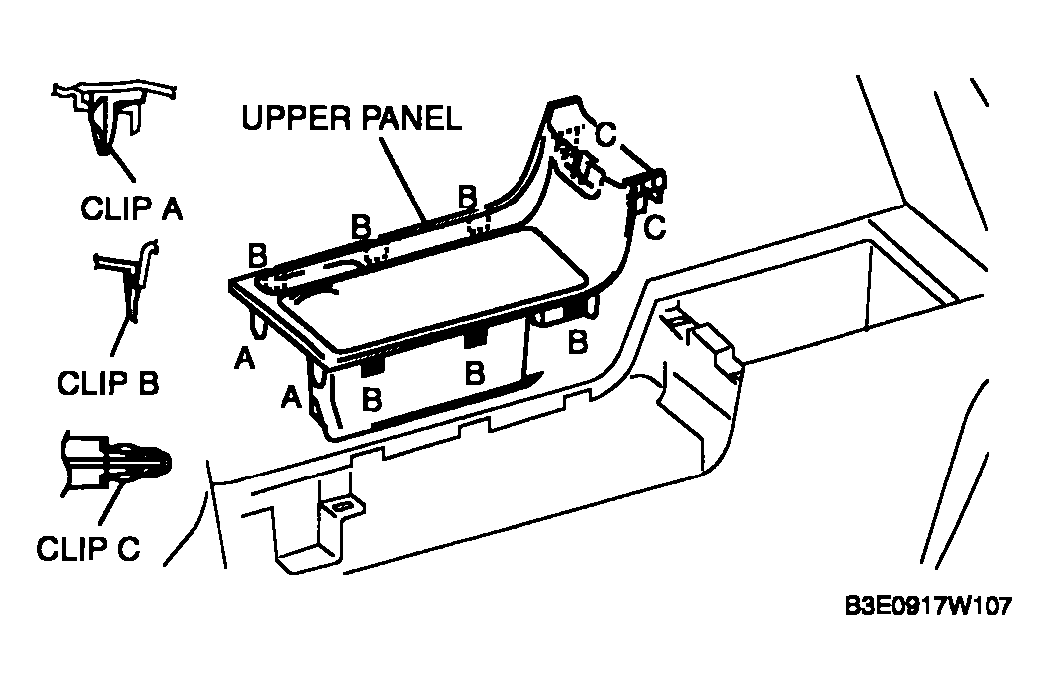

    Fig 1: Removing Upper Panel
    G04315259Courtesy of MAZDA MOTORS CORP.
  2. Detach clips D, E and F and remove the boot panel.

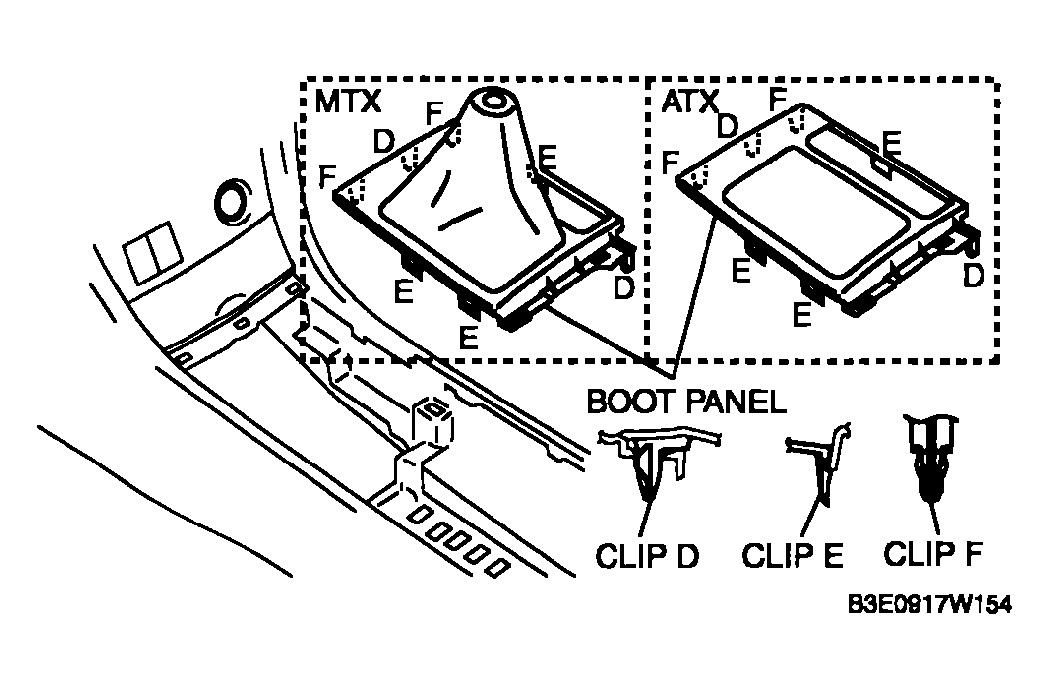

    Fig 2: Removing Boot Panel
    G04315260Courtesy of MAZDA MOTORS CORP.
  3. Remove screws A.
  4. Detach clips G.
  5. Disconnect the cigarette lighter connector.
  6. Remove the ashtray illumination, then remove the ashtray panel.

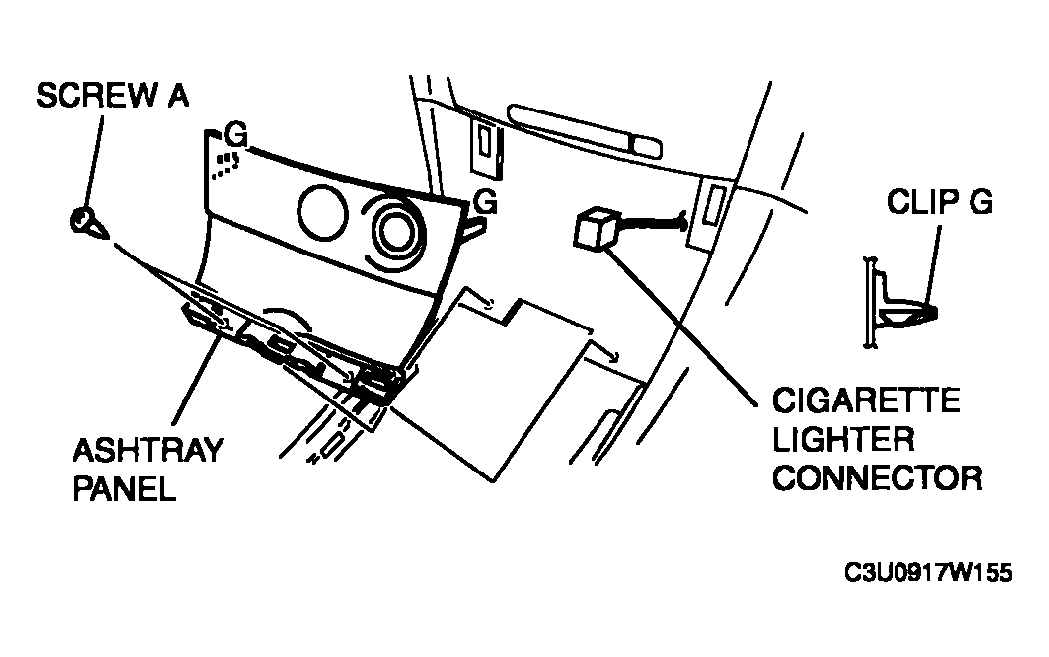

    Fig 3: Disconnecting Cigarette Lighter Connector
    G04315261Courtesy of MAZDA MOTORS CORP.
  7. Remove the screws B.
  8. Detach tabs H and remove the console.
  9. Install in the reverse order of removal.

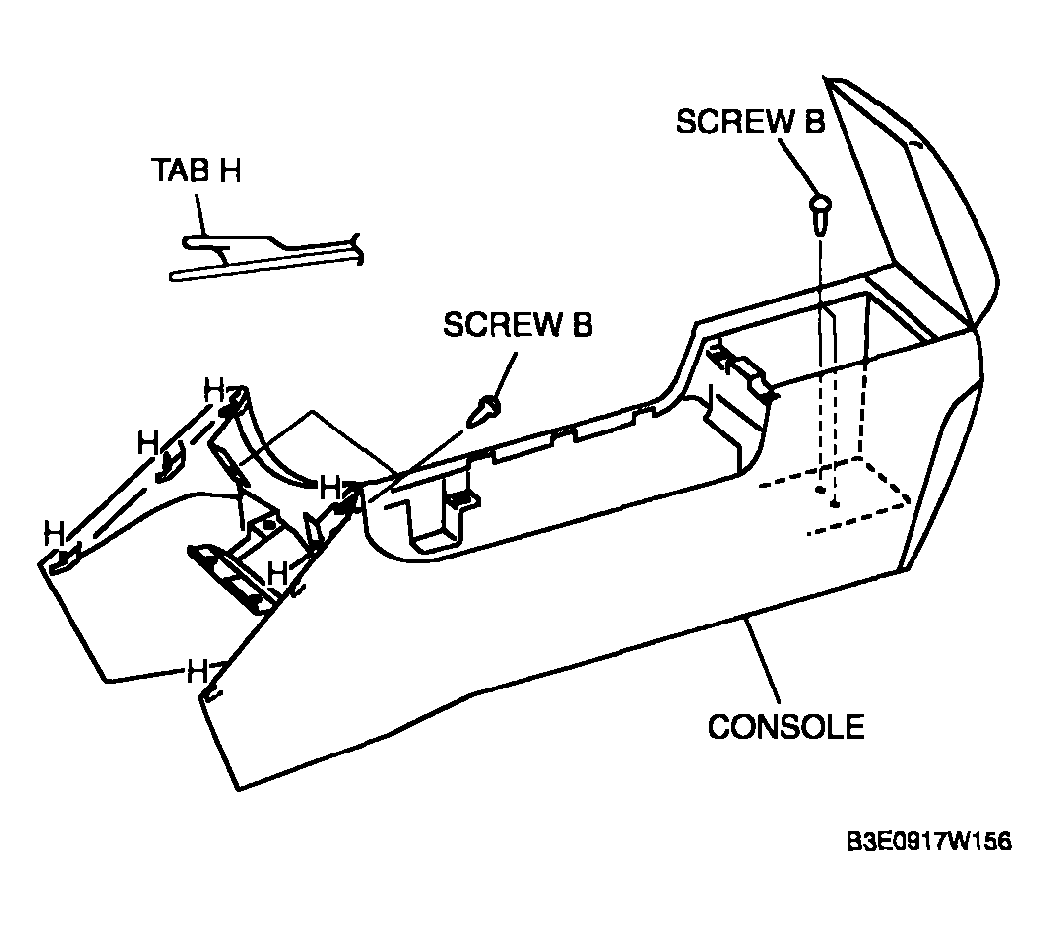

    Fig 4: Removing Console
    G04315262Courtesy of MAZDA MOTORS CORP.
