Audio Relay Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the center lower panel. (See CENTER PANEL REMOVAL/INSTALLATION .)
  3. Disconnect the audio relay connector.
  4. Remove the audio relay.
  5. Install in the reverse order of removal.

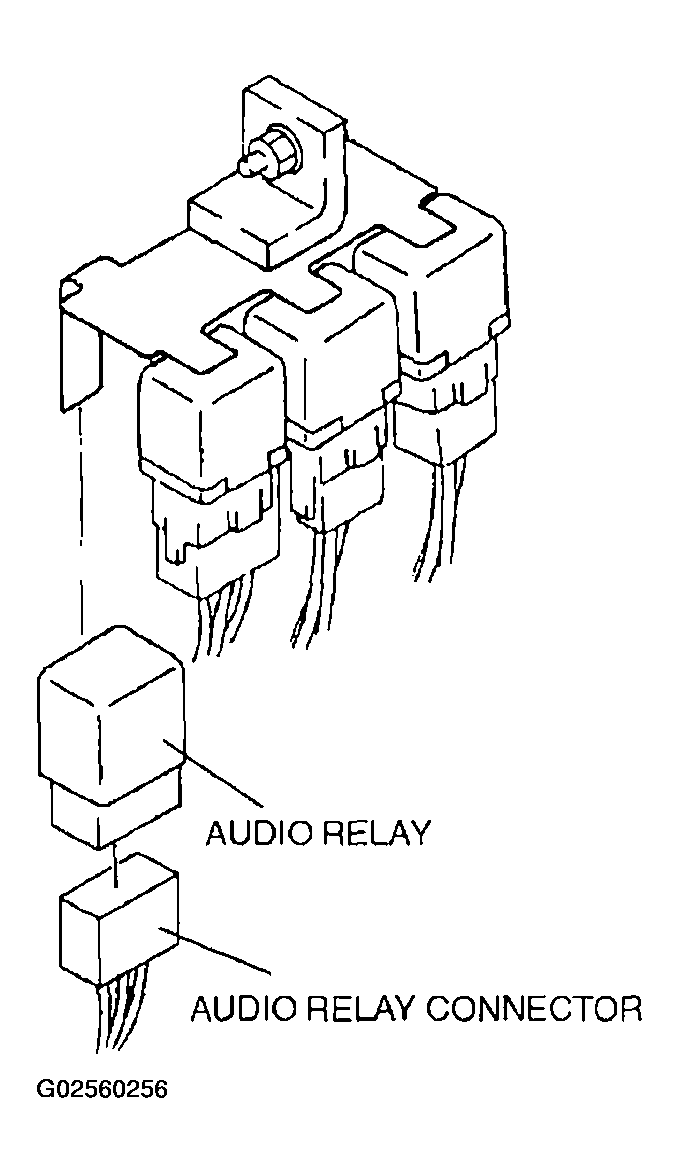

    Fig 1: Removing/Installing Audio Relay
    G02560256Courtesy of MAZDA MOTORS CORP.
