Center Panel Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the console.
  3. Remove the screws.
  4. Pull the center panel, then disengage clips A and B from the body.
  5. Disconnect the cigarette lighter connector.
  6. Install in the reverse order of removal.

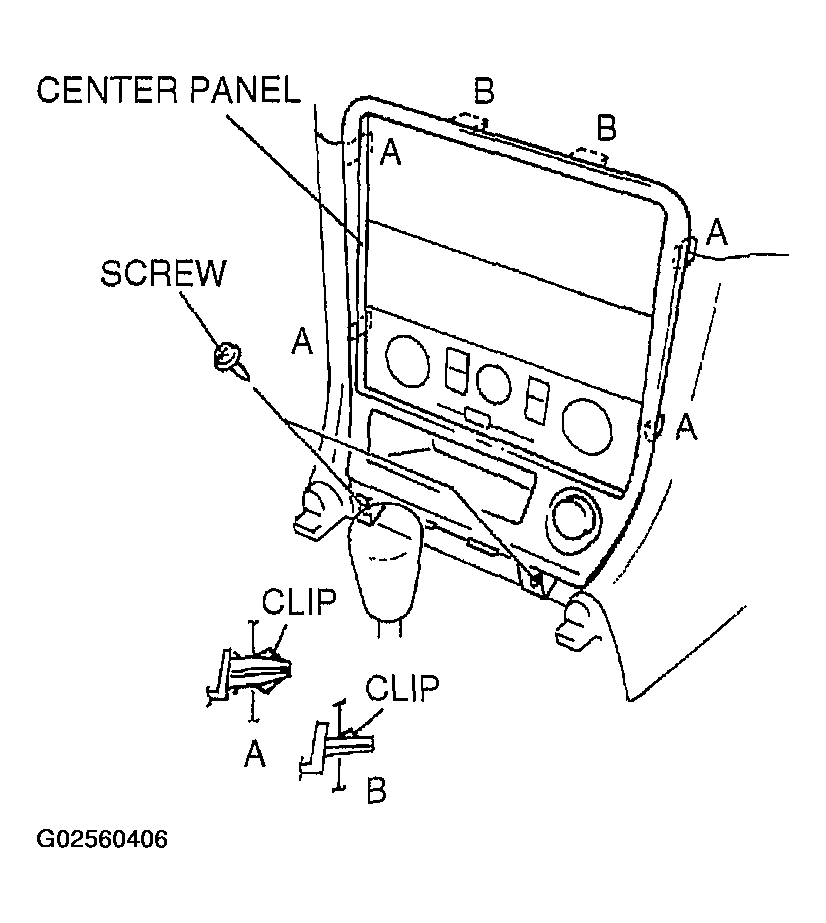

    Fig 1: Locating Center Panel Clips
    G02560406Courtesy of MAZDA MOTORS CORP.
