Inspection Of Continuity

Disconnect the TR switch connector.

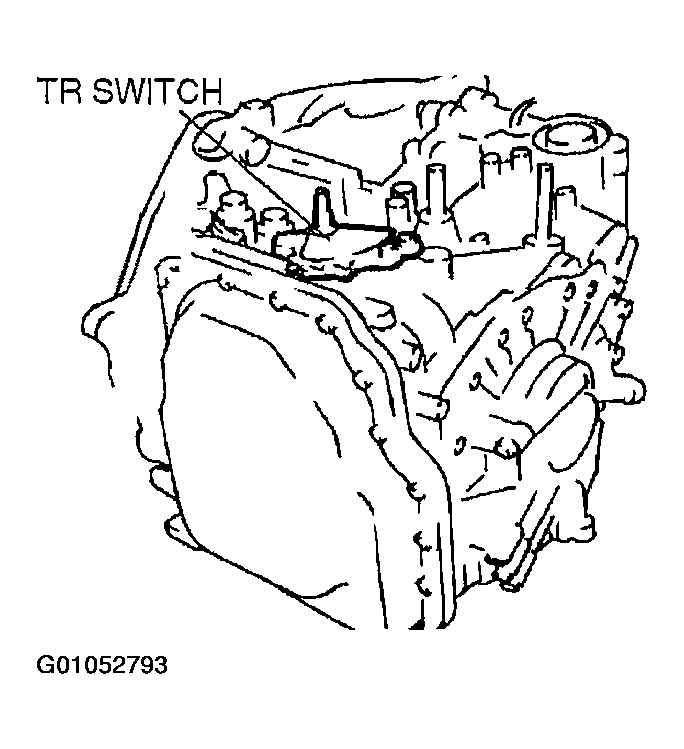

Fig 1: Locating TR Switch
Courtesy of MAZDA MOTORS CORP.
Inspect for continuity at the TR switch.
- If not as specified, adjust the TR switch, then reinspect the TR switch. (See TRANSAXLE RANGE (TR) SWITCH ADJUSTMENT .)

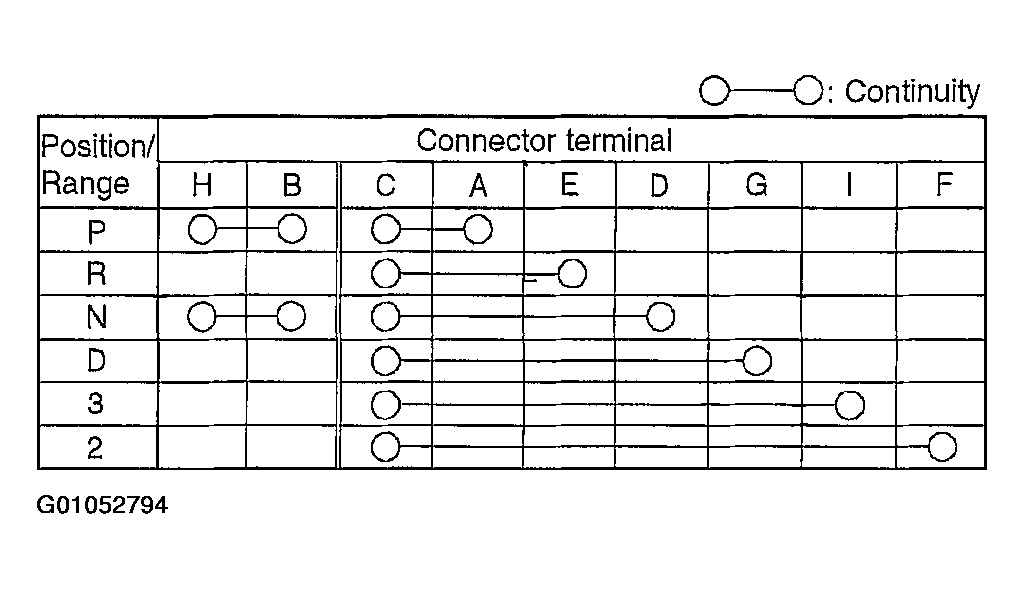

  Fig 2: TR Switch Continuity Specifications
  Courtesy of MAZDA MOTORS CORP.

  Fig 3: Identifying TR Switch Connectors Terminals
  Courtesy of MAZDA MOTORS CORP.
Connect the TR switch connector.
