Transaxle Range (Tr) Switch Adjustment

CAUTION:

Water or foreign objects entering the connector can cause a poor connection or corrosion. Be sure not to drop water or foreign objects on the connector when disconnecting it.

NOTE:

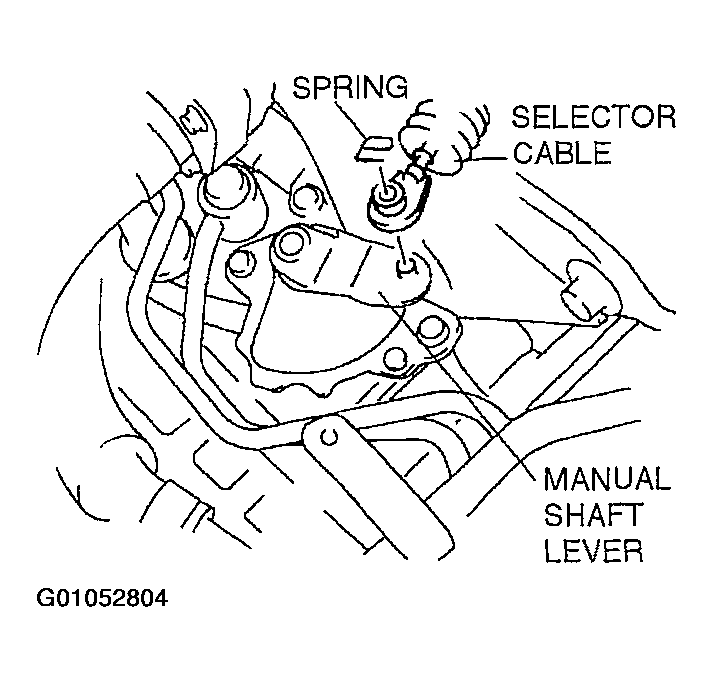

Fig 1: Disconnecting Selector Cable

Courtesy of MAZDA MOTORS CORP.

Remove the spring and disconnect the selector cable.
Press the hooks of the clips, and remove the selector cable and clips together from the bracket as shown.

Fig 2: Removing Selector Cable & Clips
Courtesy of MAZDA MOTORS CORP.
Rotate the manual shaft to the right fully, then return 2 notches to set the N position.

Fig 3: Rotating Manual Shaft
Courtesy of MAZDA MOTORS CORP.
Loosen the TR switch mounting bolts.
CAUTION:
- Improper adjustment of the TR switch will cause abnormal operation of the automatic transaxle. Be sure to use the SST to adjust the TR switch correctly.
Using the SST and by turning the TR switch, adjust the positions of the manual shaft and the TR switch neutral hole.
Tighten the TR switch mounting bolts.
Tightening Torque

4.9-6.9 N.m {50.0-70.4 kgf.cm, 43.4-61.1 in.lbf}

Fig 4: Adjusting Positions Of Manual Shaft & TR Switch Neutral Hole Using Special Tool
Courtesy of MAZDA MOTORS CORP.
Remove the SST .
Inspect for continuity at the TR switch. (See INSPECTION OF CONTINUITY .)
Connect the TR switch connector.
Connect the selector cable and install a spring and clip.
Inspect operation of the TR switch. (See INSPECTION OF OPERATION .)
